Single Pixel Touchscreen MapleSim Model - Single Pixel Touchscreen S-Function - MapleSim Model Gallery

Single Pixel Touchscreen

The touch screen is composed of transparent electrodes separated by the transparent screen, and the electrodes are capacitively coupled. As a finger approaches, the capacitance changes since a finger looks like a grounded conductor at the transmit frequency. This causes the phase of the received signal to shift, which is used as the detection signal. In the example, when the sense voltage (a measure of the phase shift) exceeds 0.2 V, the pixel is activated which is indicated in the animation by a green square.

Close

Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today


If you have MapleSim, download the model here:

Download the Model Request an S-function

Close

Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.


Model: Single Pixel Touchscreen
Industry:

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Image
SinglePixelTouchscreen

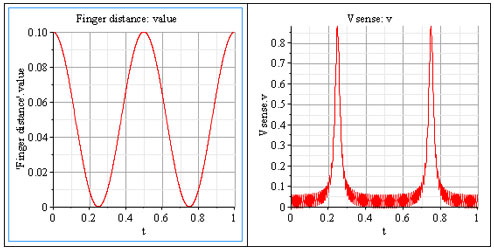

The plot on the left shows the distance of the finger to the touchscreen surface. The plot on the right is the output voltage, which goes up when the finger is close to the screen.
MapleSim Video
Video not available in this browser.
Simulink is a registered trademark of The MathWorks, Inc.
