P-Q curve of Air damper

Author
: Maplesoft AuthorTakashi Iwagaya
0
Engineering software solutions from Maplesoft
 Download
 PDF Preview
This Application runs in Maple Flow. Don't have Maple Flow? No problem!
 Try Maple Flow free for 15 days!

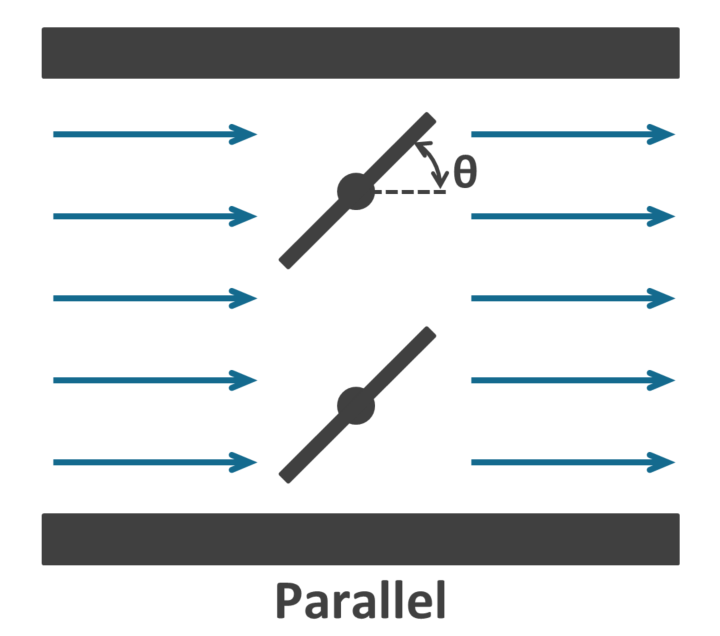

This document analyzes the characteristic of air damper for both parallel blades and opposed blades. The parameter value of the loss coefficient is referred to the reference book as follow. However, you can use the data which is provided by ASHRAE (The American Society of Heating, Refrigerating and Air-Conditioning Engineers) because the same equation is used in this document.

Application Details

Publish Date: March 14, 2022
Created In: Maple Flow 2021
Language: English
