Gain of an Ideal and Non-Ideal Amplifier

You can switch back to the summary page by clicking here.

Learn about Maple
Download Application



Amplifier Gain

Introduction

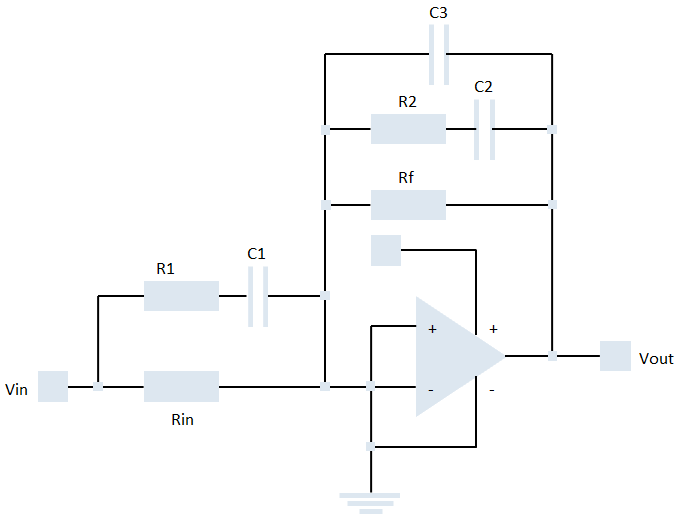

In this application, we will plot the gain of the following amplifier circuit, for both the ideal and non-ideal response

>

restart; with(DynamicSystems); with(plots)

Parameters

>

NULL

>

R__1 := 1000

>

C__1 := 10^(-7)

>

R__In := 1000

>

C__3 := 4.7*10^(-8)

>

R__2 := 1000

>

C__2 := 4.70*10^(-7)

>

R__f := 10^102


Amplifier bandwidth factors

>

GBP := 10^6

>

LPF := 300

Support Function

>

ll := proc (Z1, Z2) options operator, arrow; Z1*Z2/(Z1+Z2) end proc



Transfer functions

>

Z__1 := R__1+1/(s*C__1)

>

Z__2 := R__2+1/(s*C__2)

>

Z__In := ll(R__In, Z__1)

>

factor(Z__In)

500*(s+10000)/(s+5000)

(4.1)
>

Z__fb := ll(R__f, ll(Z__2, 1/(s*C__3)))

Ideal Amplifier GainNULL

>

G__EAideal := factor(Z__fb/Z__In)

42553.19148*(s+2127.659574)*(s+5000.)/((s+0.1934235977e-95)*(s+23404.25531)*(s+10000.))

(4.2)



Nonideal Op-Amp effects: Finite open loop gain

>

beta := 1/(1+G__EAideal)

Finite open loop gain

>

A__vo := GBP/(LPF*(1+s/(2*Pi*LPF))*(1+s/(2*Pi*GBP)))

(10000/3)/((1+(1/600)*s/Pi)*(1+(1/2000000)*s/Pi))

(4.3)
>

simplify((10000/3)/((1+(1/600)*s/Pi)*(1+(1/2000000)*s/Pi)), 'size')

4000000000000*Pi^2/((600*Pi+s)*(2000000*Pi+s))

(4.4)

Nonideal error amplifier gain

>

G__EA := simplify(G__EAideal/(1+1/(A__vo*beta)))

42553.19148*(s+5000.)*(s+2127.659574)/(1.012406241*s^3+33512.60113*s^2+234275827.3*s+135808057.8+0.1611267141e-6*s^4+0.253302959e-13*s^5)

(4.5)

Analysis

>

with(DynamicSystems)

>

sys1 := TransferFunction(G__EA)

>

sys2 := TransferFunction(G__EAideal)

>

p1 := PhasePlot(sys1, range = 10 .. 100000, hertz = true, legend = "Non-ideal")

>

p2 := PhasePlot(sys2, range = 10 .. 100000, hertz = true, legend = "Ideal", color = black)

>

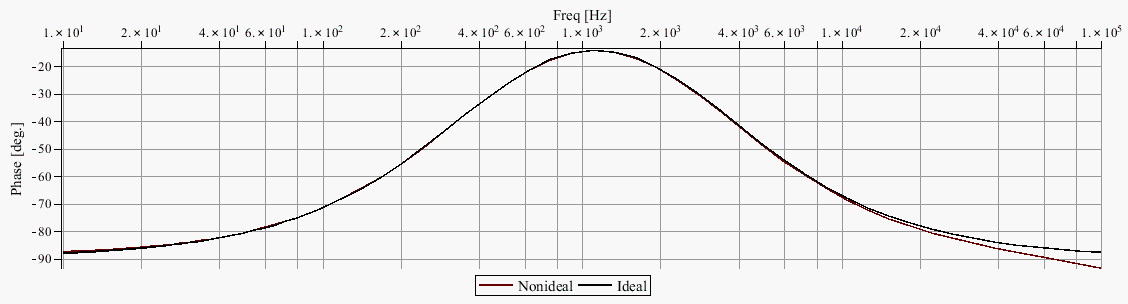

display(p1, p2)

>
