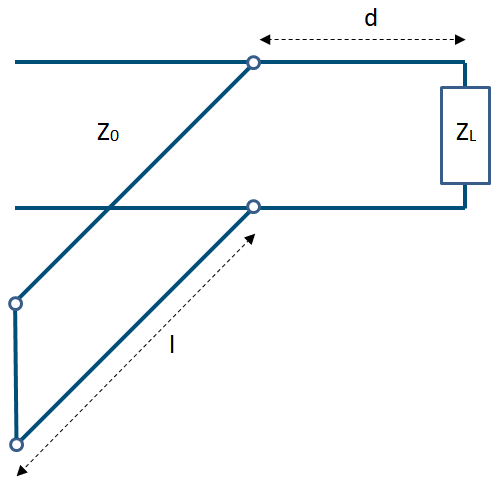

A single short circuited transmission line is a distance d from the load and of length d.
Given a characteristic impedance of Z0 and a load with complex impedance ZL, this application will calculate the values of d and l.
| • |
The real part of the impedance at the stub location must match the transmission line characteristic impedance
|
| • |
The imaginary part of the impedance at the stub location must equal 0
|
Reference:
Iskander, Magdi F., Electromagnetic Fields and Waves, Prentice-Hall, Inc., Englewood Cliffs, NJ, 1992.
| > |
|
