Solving Cauchy problems for  heat equations

by Aleksas Domarkas

Vilnius University, Faculty of Mathematics and Informatics,

Naugarduko 24, Vilnius, Lithuania

aleksas@ieva.mif.vu.lt

NOTE: In this session we solve Cauchy problems for  heat equations

1 Example

Problem

>    restart;

>    eq:=diff(u(x,t),t)-a^2*diff(u(x,t),x,x)=0;#x>-infinity,x<infinity,t>0;

>    ic:=u(x,0)=phi(x);#x>-infinity,x<infinity;

eq := diff(u(x,t),t)-a^2*diff(u(x,t),`$`(x,2)) = 0

ic := u(x,0) = phi(x)

>    a:=1:
phi:=x->piecewise(x<0,0,x<1,x,x<2,2-x,x<3,x-2,x<4,4-x,0);

phi := proc (x) options operator, arrow; piecewise(x < 0,0,x < 1,x,x < 2,2-x,x < 3,x-2,x < 4,4-x,0) end proc

>    'phi(x)'=phi(x);

phi(x) = PIECEWISE([0, x < 0],[x, x < 1],[2-x, x < 2],[x-2, x < 3],[4-x, x < 4],[0, otherwise])

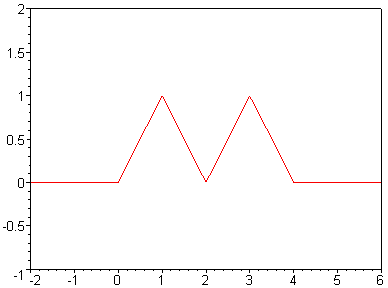

>    plot(phi,-2..6,-1..2,axes=boxed);

[Maple Plot]

Solving problem

>    with(inttrans):

>    phi:=unapply(convert(phi(x),Heaviside),x);

phi := proc (x) options operator, arrow; x*Heaviside(x)-2*x*Heaviside(x-1)+2*Heaviside(x-1)-4*Heaviside(x-2)+2*x*Heaviside(x-2)-2*x*Heaviside(x-3)+6*Heaviside(x-3)-4*Heaviside(x-4)+x*Heaviside(x-4) end...
phi := proc (x) options operator, arrow; x*Heaviside(x)-2*x*Heaviside(x-1)+2*Heaviside(x-1)-4*Heaviside(x-2)+2*x*Heaviside(x-2)-2*x*Heaviside(x-3)+6*Heaviside(x-3)-4*Heaviside(x-4)+x*Heaviside(x-4) end...

>    assume(t>0);

>    fourier(eq,x,w);

diff(fourier(u(x,t),x,w),t)+w^2*fourier(u(x,t),x,w) = 0

>    ode:=subs(fourier(u(x,t),x,w)=s(t),%);

ode := diff(s(t),t)+w^2*s(t) = 0

>    dsolve({ode,s(0)=fourier(phi(x),x,w)},s(t));

s(t) = -(1-2*exp(-I*w)-2*exp(-I*w)*w^2*Pi*Dirac(w)+4*exp(-2*I*w)*w^2*Pi*Dirac(w)+2*exp(-2*I*w)-2*exp(-3*I*w)-6*exp(-3*I*w)*w^2*Pi*Dirac(w)+4*exp(-4*I*w)*w^2*Pi*Dirac(w)+exp(-4*I*w))/w^2*exp(-w^2*t)
s(t) = -(1-2*exp(-I*w)-2*exp(-I*w)*w^2*Pi*Dirac(w)+4*exp(-2*I*w)*w^2*Pi*Dirac(w)+2*exp(-2*I*w)-2*exp(-3*I*w)-6*exp(-3*I*w)*w^2*Pi*Dirac(w)+4*exp(-4*I*w)*w^2*Pi*Dirac(w)+exp(-4*I*w))/w^2*exp(-w^2*t)

>    invfourier(rhs(%),w,x):
sol:=collect(map(simplify,expand(%)),erf);

sol := 1/2*x*erf(1/2*x/t^(1/2))+(3-x)*erf(1/2*(x-3)/t^(1/2))+(x-2)*erf(1/2*(x-2)/t^(1/2))+(1-x)*erf(1/2*(x-1)/t^(1/2))+(1/2*x-2)*erf(1/2*(x-4)/t^(1/2))+1/Pi^(1/2)*t^(1/2)*exp(-1/4*(x-4)^2/t)+1/Pi^(1/2)...
sol := 1/2*x*erf(1/2*x/t^(1/2))+(3-x)*erf(1/2*(x-3)/t^(1/2))+(x-2)*erf(1/2*(x-2)/t^(1/2))+(1-x)*erf(1/2*(x-1)/t^(1/2))+(1/2*x-2)*erf(1/2*(x-4)/t^(1/2))+1/Pi^(1/2)*t^(1/2)*exp(-1/4*(x-4)^2/t)+1/Pi^(1/2)...
sol := 1/2*x*erf(1/2*x/t^(1/2))+(3-x)*erf(1/2*(x-3)/t^(1/2))+(x-2)*erf(1/2*(x-2)/t^(1/2))+(1-x)*erf(1/2*(x-1)/t^(1/2))+(1/2*x-2)*erf(1/2*(x-4)/t^(1/2))+1/Pi^(1/2)*t^(1/2)*exp(-1/4*(x-4)^2/t)+1/Pi^(1/2)...

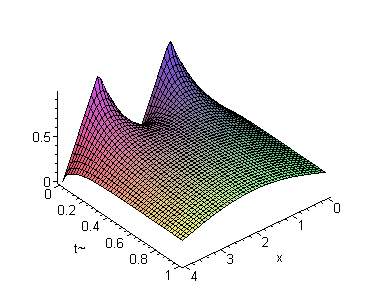

>    plot3d(sol,x=0..4,t=0..1,orientation=[50,40],numpoints=2000,axes=framed);

[Maple Plot]

Checking the Solution

>    subs(u(x,t)=sol, eq):
simplify(lhs(%)-rhs(%));

0

>    plot(limit(sol,t=0,right), x=0..4);

[Maple Plot]

>

2 Example

Problem

[vlad] 13.5.8

>    restart;

>    eq:=diff(u(x,t),t)-a^2*diff(u(x,t),x,x)=0;

>    ic:=u(x,0)=phi(x);

eq := diff(u(x,t),t)-a^2*diff(u(x,t),`$`(x,2)) = 0

ic := u(x,0) = phi(x)

>    a:=1/2;phi:=x->sin(x)*exp(-x^2);

a := 1/2

phi := proc (x) options operator, arrow; sin(x)*exp(-x^2) end proc

>

Solving by Poisson formula

By Poisson formula:

u(x,t) = Int(phi(xi)*exp(-(x-xi)^2/(4*a^2*t)),xi = -infinity .. infinity)/2/a/sqrt(Pi*t)

>    sol := Int(phi(xi)*exp(-(x-xi)^2/(4*a^2*t)),
xi = -infinity .. infinity)/2/a/sqrt(Pi*t);

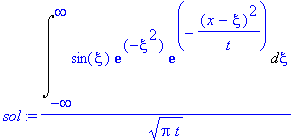

sol := Int(sin(xi)*exp(-xi^2)*exp(-(x-xi)^2/t),xi = -infinity .. infinity)/(Pi*t)^(1/2)

>    assume(t>0);

>    convert(%,exp);

Int(-1/2*I*(exp(xi*I)-1/exp(xi*I))*exp(-xi^2)*exp(-(x-xi)^2/t),xi = -infinity .. infinity)/(Pi*t)^(1/2)

>    expand(%);

-1/2*I*Int(1/exp(xi^2)/exp(1/t*x^2)*exp(1/t*x*xi)^2/exp(1/t*xi^2)*exp(xi*I)-1/exp(xi^2)/exp(1/t*x^2)*exp(1/t*x*xi)^2/exp(1/t*xi^2)/exp(xi*I),xi = -infinity .. infinity)/(Pi*t)^(1/2)

>    value(%);

-1/2*I*(exp(-1/4*(4*x^2-4*I*x+t)/(t+1))*t/((t+1)*t)^(1/2)*Pi^(1/2)-exp(-1/4*(4*x^2+4*I*x+t)/(t+1))*t/((t+1)*t)^(1/2)*Pi^(1/2))/(Pi*t)^(1/2)

>    evalc(%);

exp((-x^2-1/4*t)/(t+1))*sin(x/(t+1))*t/(t^2+t)^(1/2)*Pi^(1/2)/(Pi*t)^(1/2)

>    sol1:=simplify(%);

sol1 := exp(-1/4*(4*x^2+t)/(t+1))*sin(x/(t+1))/(t+1)^(1/2)

Solving using Fourier transform

>    with(inttrans):

>    fourier(eq,x,w);

diff(fourier(u(x,t),x,w),t)+1/4*w^2*fourier(u(x,t),x,w) = 0

>    ode:=subs(fourier(u(x,t),x,w)=s(t),%);

ode := diff(s(t),t)+1/4*w^2*s(t) = 0

>    dsolve({ode,s(0)=fourier(phi(x),x,w)},s(t));

s(t) = (-1/2*I*sqrt(Pi)*exp(-1/4*(w-1)^2)+1/2*I*sqrt(Pi)*exp(-1/4*(w+1)^2))*exp(-1/4*w^2*t)

>    sol2:=simplify(evalc(invfourier(rhs(%),w,x)));

sol2 := exp(-1/4*(4*x^2+t)/(t+1))*sin(x/(t+1))/(t+1)^(1/2)

>    is(sol1=sol2);

true

>

Checking the Solution

>    u:=unapply(sol1,(x,t)):

>    simplify(lhs(eq)-rhs(eq));

>    simplify(lhs(ic)-rhs(ic));

>    u:='u':

0

0

>

3 Example

Problem

[vlad] 13.6.2

>    restart;with(linalg,laplacian);

[laplacian]

>    eq:=diff(u(x,y,t),t)-a^2*laplacian(u(x,y,t),[x,y])=sin(t)*sin(x)*sin(y);

>    ic:=u(x,y,0)=1;

eq := diff(u(x,y,t),t)-a^2*(diff(u(x,y,t),`$`(x,2))+diff(u(x,y,t),`$`(y,2))) = sin(t)*sin(x)*sin(y)

ic := u(x,y,0) = 1

>    a:=1;

a := 1

>    f:=(x,y,t)->sin(t)*sin(x)*sin(y);

f := proc (x, y, t) options operator, arrow; sin(t)*sin(x)*sin(y) end proc

>    phi:=(x,y)->1;

phi := 1

Solving by decomposition method

I

>    eq1:=eq;

>    ic1:=u(x,0)=0;

eq1 := diff(u(x,y,t),t)-diff(u(x,y,t),`$`(x,2))-diff(u(x,y,t),`$`(y,2)) = sin(t)*sin(x)*sin(y)

ic1 := u(x,0) = 0

II

>    eq2:=lhs(eq)=0;

>    ic2:=ic;

eq2 := diff(u(x,y,t),t)-diff(u(x,y,t),`$`(x,2))-diff(u(x,y,t),`$`(y,2)) = 0

ic2 := u(x,y,0) = 1

solving I

>    subs(u(x,y,t)=v(t)*sin(x)*sin(y),eq1);

diff(v(t)*sin(x)*sin(y),t)-diff(v(t)*sin(x)*sin(y),`$`(x,2))-diff(v(t)*sin(x)*sin(y),`$`(y,2)) = sin(t)*sin(x)*sin(y)

>    dsolve({%,v(0)=0},v(t));

>    s1:=rhs(%)*sin(x)*sin(y);

v(t) = -1/5*cos(t)+2/5*sin(t)+1/5*exp(-2*t)

s1 := (-1/5*cos(t)+2/5*sin(t)+1/5*exp(-2*t))*sin(x)*sin(y)

>

solving II

>    subs(u(x,y,t)=v(t)*rhs(ic2),eq2);

>    simplify(%/rhs(ic2));

>    dsolve({%,v(0)=1},v(t));

>    s2:=rhs(%)*rhs(ic2);

diff(v(t),t)-diff(v(t),`$`(x,2))-diff(v(t),`$`(y,2)) = 0

diff(v(t),t) = 0

v(t) = 1

s2 := 1

>

Solution

>    sol:=s1+s2;

sol := (-1/5*cos(t)+2/5*sin(t)+1/5*exp(-2*t))*sin(x)*sin(y)+1

>

Checking the Solution

>    u:=unapply(sol,(x,y,t)):

>    simplify(convert(lhs(eq)-rhs(eq),trig));

>    simplify(lhs(ic)-rhs(ic));

>    u:='u':

0

0

>

4 Example

problem

[vlad] 13.6.5.

>    restart;with(linalg,laplacian):with(student,Doubleint):

>    eq:=diff(u(x,y,t),t)-laplacian(u(x,y,t),[x,y])/8=1/8;

>    ic:=u(x,y,0)=exp(-(x-y)^2);a:=sqrt(1/8):

eq := diff(u(x,y,t),t)-1/8*diff(u(x,y,t),`$`(x,2))-1/8*diff(u(x,y,t),`$`(y,2)) = 1/8

ic := u(x,y,0) = exp(-(x-y)^2)

>

I

>    eq1:=eq;

>    ic1:=u(x,y,0)=0;

eq1 := diff(u(x,y,t),t)-1/8*diff(u(x,y,t),`$`(x,2))-1/8*diff(u(x,y,t),`$`(y,2)) = 1/8

ic1 := u(x,y,0) = 0

II

>    eq2:=lhs(eq)=0;

>    ic2:=u(x,0)=rhs(ic);

eq2 := diff(u(x,y,t),t)-1/8*diff(u(x,y,t),`$`(x,2))-1/8*diff(u(x,y,t),`$`(y,2)) = 0

ic2 := u(x,0) = exp(-(x-y)^2)

solving I

>    subs(u(x,y,t)=v(t),eq1);

diff(v(t),t)-1/8*diff(v(t),`$`(x,2))-1/8*diff(v(t),`$`(y,2)) = 1/8

>    dsolve({%,v(0)=0},v(t));

>    s1:=rhs(%);

v(t) = 1/8*t

s1 := 1/8*t

>

solving II

>    phi:=unapply(rhs(ic2),(x,y));

phi := proc (x, y) options operator, arrow; exp(-(x-y)^2) end proc

By Poisson formula

>    1/(sqrt(4*a^2*Pi*t))^2*Doubleint(phi(xi,eta)*exp((-(x-xi)^2-(y-eta)^2)/(4*a^2*t)),xi=-infinity..infinity,eta=-infinity..infinity);

2/Pi/t*Int(Int(exp(-(xi-eta)^2)*exp(2*(-(x-xi)^2-(y-eta)^2)/t),xi = -infinity .. infinity),eta = -infinity .. infinity)

>    assume(t>0);

>    value(%);

exp((-x^2-y^2+2*y*x)/(t+1))/(t+1)^(1/2)

>    s2:=simplify(%);

s2 := exp(-(x-y)^2/(t+1))/(t+1)^(1/2)

>

Solution

>    sol:=s1+s2;

sol := 1/8*t+exp(-(x-y)^2/(t+1))/(t+1)^(1/2)

>

Checking the Solution

>    u:=unapply(sol,(x,y,t)):

>    simplify(lhs(eq)-rhs(eq));

>    simplify(lhs(ic)-rhs(ic));

0

0

>

5 Example

problem

[vlad] 13.7.4

>    restart;with(linalg,laplacian): with(student,Tripleint):

>    eq:=diff(u(x,y,z,t),t)-laplacian(u(x,y,z,t),[x,y,z])=cos(x-y+z);

>    ic:=u(x,y,z,0)=exp(-(x+y-z)^2);a:=1:

eq := diff(u(x,y,z,t),t)-diff(u(x,y,z,t),`$`(x,2))-diff(u(x,y,z,t),`$`(y,2))-diff(u(x,y,z,t),`$`(z,2)) = cos(x-y+z)

ic := u(x,y,z,0) = exp(-(x+y-z)^2)

>    assume(t>0);

I

>    eq1:=eq;

>    ic1:=u(x,y,0)=0;

eq1 := diff(u(x,y,z,t),t)-diff(u(x,y,z,t),`$`(x,2))-diff(u(x,y,z,t),`$`(y,2))-diff(u(x,y,z,t),`$`(z,2)) = cos(x-y+z)

ic1 := u(x,y,0) = 0

II

>    eq2:=lhs(eq)=0;

>    ic2:=u(x,0)=rhs(ic);

eq2 := diff(u(x,y,z,t),t)-diff(u(x,y,z,t),`$`(x,2))-diff(u(x,y,z,t),`$`(y,2))-diff(u(x,y,z,t),`$`(z,2)) = 0

ic2 := u(x,0) = exp(-(x+y-z)^2)

solving I

>    subs(u(x,y,z,t)=v(t)*rhs(eq1),eq1);

diff(v(t)*cos(x-y+z),t)-diff(v(t)*cos(x-y+z),`$`(x,2))-diff(v(t)*cos(x-y+z),`$`(y,2))-diff(v(t)*cos(x-y+z),`$`(z,2)) = cos(x-y+z)
diff(v(t)*cos(x-y+z),t)-diff(v(t)*cos(x-y+z),`$`(x,2))-diff(v(t)*cos(x-y+z),`$`(y,2))-diff(v(t)*cos(x-y+z),`$`(z,2)) = cos(x-y+z)

>    dsolve({%,v(0)=0},v(t));

>    s1:=rhs(%)*rhs(eq1);

v(t) = 1/3-1/3*exp(-3*t)

s1 := (1/3-1/3*exp(-3*t))*cos(x-y+z)

>

solving II

>    phi:=unapply(rhs(ic2),(x,y,z));

phi := proc (x, y, z) options operator, arrow; exp(-(x+y-z)^2) end proc

>    R:=-infinity..infinity;

R := -infinity .. infinity

By Poisson formula

>    1/(sqrt(4*a^2*Pi*t))^3*Tripleint(phi(xi,eta,tau)*exp((-(x-xi)^2-(y-eta)^2-(z-tau)^2)/(4*a^2*t)),xi=R,eta=R,tau=R);

1/8/(Pi*t)^(3/2)*Int(Int(Int(exp(-(xi+eta-tau)^2)*exp(1/4*(-(x-xi)^2-(y-eta)^2-(z-tau)^2)/t),xi = -infinity .. infinity),eta = -infinity .. infinity),tau = -infinity .. infinity)

>    value(%);

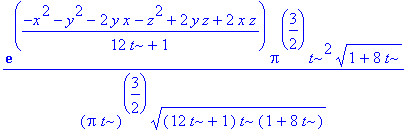

1/(Pi*t)^(3/2)*exp((-x^2-y^2-2*y*x-z^2+2*y*z+2*x*z)/(12*t+1))*Pi^(3/2)*t^2*(1+8*t)^(1/2)/((12*t+1)*t*(1+8*t))^(1/2)

>    s2:=simplify(%);

s2 := exp(-(x+y-z)^2/(12*t+1))/(12*t+1)^(1/2)

solution

>    sol:=s1+s2;

sol := (1/3-1/3*exp(-3*t))*cos(x-y+z)+exp(-(x+y-z)^2/(12*t+1))/(12*t+1)^(1/2)

>

Checking the Solution

>    u:=unapply(sol,(x,y,z,t)):

>    simplify(lhs(eq)-rhs(eq));

>    simplify(lhs(ic)-rhs(ic));

>    u:='u':

0

0

>

6 Example

Problem

[vlad] 13.7.5.

>    restart;with(linalg,laplacian):with(student,Tripleint):

>    eq:=diff(u(x,y,z,t),t)-laplacian(u(x,y,z,t),[x,y,z])=0;#t>0,-infinity<x,y,z<infinity

>    ic:=u(x,y,z,0)=cos(x*y)*sin(z);#-infinity<x,y,z<infinity

eq := diff(u(x,y,z,t),t)-diff(u(x,y,z,t),`$`(x,2))-diff(u(x,y,z,t),`$`(y,2))-diff(u(x,y,z,t),`$`(z,2)) = 0

ic := u(x,y,z,0) = cos(x*y)*sin(z)

>    assume(t>0);

Solving problem

>    phi:=unapply(rhs(ic),(x,y,z));

phi := proc (x, y, z) options operator, arrow; cos(x*y)*sin(z) end proc

>    R:=-infinity..infinity;a:=1:

R := -infinity .. infinity

By Poisson formula

>    1/(sqrt(4*a^2*Pi*t))^3*Tripleint(phi(xi,eta,tau)*exp((-(x-xi)^2-(y-eta)^2-(z-tau)^2)/(4*a^2*t)),xi=R,eta=R,tau=R);

1/8/(Pi*t)^(3/2)*Int(Int(Int(cos(xi*eta)*sin(tau)*exp(1/4*(-(x-xi)^2-(y-eta)^2-(z-tau)^2)/t),xi = -infinity .. infinity),eta = -infinity .. infinity),tau = -infinity .. infinity)

>    convert(%,exp):

>    expand(%):

>    value(%):

Solution

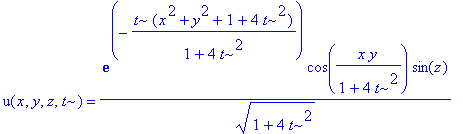

>    u(x,y,z,t)=simplify(evalc(%));

u(x,y,z,t) = exp(-t*(x^2+y^2+1+4*t^2)/(1+4*t^2))*cos(x*y/(1+4*t^2))*sin(z)/(1+4*t^2)^(1/2)

Checking the Solution

>    u:=unapply(rhs(%),(x,y,z,t)):

>    simplify(lhs(eq)-rhs(eq));

>    simplify(lhs(ic)-rhs(ic));

>    u:='u':

0

0

>

7 Example

Problem

>    restart;

>    with(linalg,laplacian):

>    eq:=diff(u(x,y,z,t),t)-a^2*laplacian(u(x,y,z,t),[x,y,z])=f;#-infty<x,y,z<infty,t>0

eq := diff(u(x,y,z,t),t)-a^2*(diff(u(x,y,z,t),`$`(x,2))+diff(u(x,y,z,t),`$`(y,2))+diff(u(x,y,z,t),`$`(z,2))) = f

>    ic:=u(x,y,z,0)=phi;#-infty<x,y,z<infty

ic := u(x,y,z,0) = phi

>    phi:=randpoly([x, y, z]);

phi := 79*y+56*x^2*z^2+49*x*y^2*z+63*y^2*z^2+57*x^3*y^2-59*x^2*y^3

>    f:=randpoly([x, y, z]);

f := 77*y*z^2+66*x^3*y+54*x*y*z^2-5*x*z^3+99*y^2*z^2-61*x*z^4

>

Solving problem

>    L:=f->laplacian(f,[x,y,z]);

L := proc (f) options operator, arrow; laplacian(f,[x, y, z]) end proc

>    d:=max(degree(phi),degree(f),1);

d := 5

>    sol:=int(sum(a^(2*k)*(t-tau)^k/k!*(L@@k)(f),k=0..d),tau=0..t)+
sum(a^(2*k)*t^k/k!*(L@@k)(phi),k=0..d):

Solution:

>    sol:=simplify(%);

sol := 252*t^2*a^2*x*y-15*t^2*a^2*x*z-366*t^2*a^2*x*z^2+342*a^2*t*x*y^2+98*a^2*t*x*z-354*a^2*t*x^2*y+54*x*y*z^2*t+476*a^4*t^2+77*y*z^2*t+66*x^3*y*t-5*x*z^3*t-61*x*z^4*t+132*a^4*t^3-244*a^4*t^3*x+77*t^2...
sol := 252*t^2*a^2*x*y-15*t^2*a^2*x*z-366*t^2*a^2*x*z^2+342*a^2*t*x*y^2+98*a^2*t*x*z-354*a^2*t*x^2*y+54*x*y*z^2*t+476*a^4*t^2+77*y*z^2*t+66*x^3*y*t-5*x*z^3*t-61*x*z^4*t+132*a^4*t^3-244*a^4*t^3*x+77*t^2...
sol := 252*t^2*a^2*x*y-15*t^2*a^2*x*z-366*t^2*a^2*x*z^2+342*a^2*t*x*y^2+98*a^2*t*x*z-354*a^2*t*x^2*y+54*x*y*z^2*t+476*a^4*t^2+77*y*z^2*t+66*x^3*y*t-5*x*z^3*t-61*x*z^4*t+132*a^4*t^3-244*a^4*t^3*x+77*t^2...
sol := 252*t^2*a^2*x*y-15*t^2*a^2*x*z-366*t^2*a^2*x*z^2+342*a^2*t*x*y^2+98*a^2*t*x*z-354*a^2*t*x^2*y+54*x*y*z^2*t+476*a^4*t^2+77*y*z^2*t+66*x^3*y*t-5*x*z^3*t-61*x*z^4*t+132*a^4*t^3-244*a^4*t^3*x+77*t^2...

>

Checking the Solution

>    u:=unapply(sol,(x,y,z,t)):

>    simplify(rhs(eq)-lhs(eq));

>    simplify(rhs(ic)-lhs(ic));

0

0

>

Other examples

Other examples see in inttrans.mws.
