Partial Differential Equations

Higher-dimensional PDE: Vibrating circular membranes and Bessel functions.

Anton Dzhamay

Department of Mathematics

The University of Michigan

Ann Arbor, MI 48109

wPage: http://www.math.lsa.umich.edu/~adzham

email: adzham@umich.edu

Copyright  2004  by Anton Dzhamay

All rights reserved

Introduction

In this worksheet we consider some examples of vibrating circular membranes. Such membranes are described by the two-dimensional wave equation. Circular geometry requires the use of polar coordinates, which in turn leads to the Bessel ODE , and so the basic solutions obtained by the method of separations of variables (product solutions or standing waves) are described with the help of Bessel functions .

Packages

Some packages that we use in this worksheet:

>	restart: with(plottools): with(plots):

Warning, the names arrow and changecoords have been redefined

>

Bessel Functions

Graphs of a few Bessel functions of the first and second kind:

>	display([seq( display(plot([BesselJ(m,x),BesselY(m,x)],x=0..20,thickness=3, color=[red,blue],view=-1..1, title=sprintf("Bessel functions J_%d and Y_%d",m,m))),m=0..5)], insequence=true);

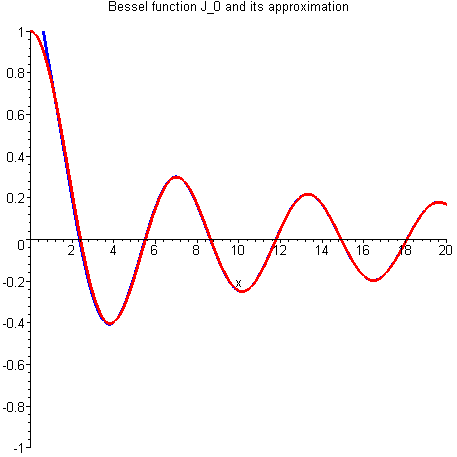

For large values of  Bessel functions can be approximated by the usual trigonometric functions with decreasing amplitude:

>	BesselJa:=(m,z)->sqrt(2/(Pi*z))*cos(z-Pi/4-m*Pi/2): BesselYa:=(m,z)->sqrt(2/(Pi*z))*sin(z-Pi/4-m*Pi/2):

>	display([seq( display(plot([BesselJ(m,x),BesselJa(m,x)],x=0..20,thickness=3, color=[red,blue],view=-1..1, title=sprintf("Bessel function J_%d and its approximation",m))),m=0..5)], insequence=true);

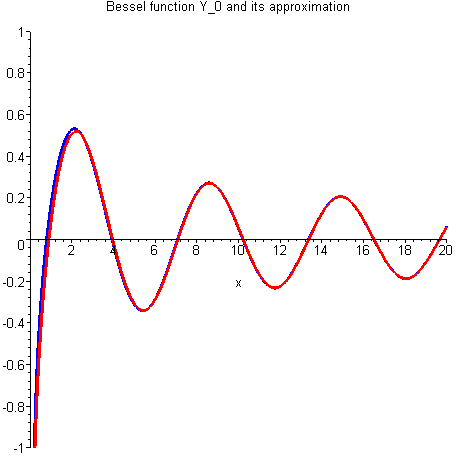

>	display([seq( display(plot([BesselY(m,x),BesselYa(m,x)],x=0..20,thickness=3, color=[red,blue],view=-1..1, title=sprintf("Bessel function Y_%d and its approximation",m))),m=0..5)], insequence=true);

>

Definitions

Let us introduce a short-hand notation for the -th zero of the Bessel function :

>	z:=BesselJZeros:z(m,n);

First we define the spatial eigenfunction    of the Dirichlet boundary problem:

>	PhiC:=unapply(BesselJ(m,z(m,n)*r/a)*cos(m*theta),m,n):'Phi[c][m,n](x,y)'=PhiC(m,n);

>	PhiS:=unapply(BesselJ(m,z(m,n)*r/a)*sin(m*theta),m,n):'Phi[s][m,n](r,theta)'=PhiS(m,n);

The corresponding eigenvalue   is

>	lambda:=unapply((z(m,n)/a)^2,m,n):'lambda[m,n]'=lambda(m,n);

In this worksheet we consider only initial displacements, and therefore

>	T:=unapply(cos(c*sqrt(lambda(m,n))*t),m,n):T(m,n);

and the product solutions are

>	uC:=unapply(PhiC(m,n)*(T(m,n)),m,n):'u[c][m,n](r,theta,t)'=uC(m,n); uS:=unapply(PhiS(m,n)*(T(m,n)),m,n):'u[s][m,n](r,theta,t)'=uS(m,n);

The period of ( )-oscillation is

>	P:=unapply( (2*Pi)/(c*sqrt(lambda(m,n))),m,n):P(m,n);

We also introduce the following procedure that will allow us to plot solutions together with nodal curves:

>

addcoords(z_cylindrical,[z,r,theta],[r*cos(theta),r*sin(theta),z]); wave:=proc(sol) display([ contourplot3d(sol,r=0..1.01*a,theta=0..2*Pi,contours=[0],color=red, coords=z_cylindrical,thickness=3,numpoints=600), plot3d(sol,r=0..1.01*a,theta=0..2*Pi,coords=z_cylindrical,shading=zhue)],scaling=constrained,axes=boxed); end:

>

Vibrating Circular Drums

>	c:=1:a:=2:

The "lowest energy" mode has the eigenvalue

>	'lambda(0,1)'=lambda(0,1);

and the corresponding eigenfunction is obtained by mapping the first zero of  to the radius of the circle:

>	'PhiC[0,1]'=PhiC(0,1);

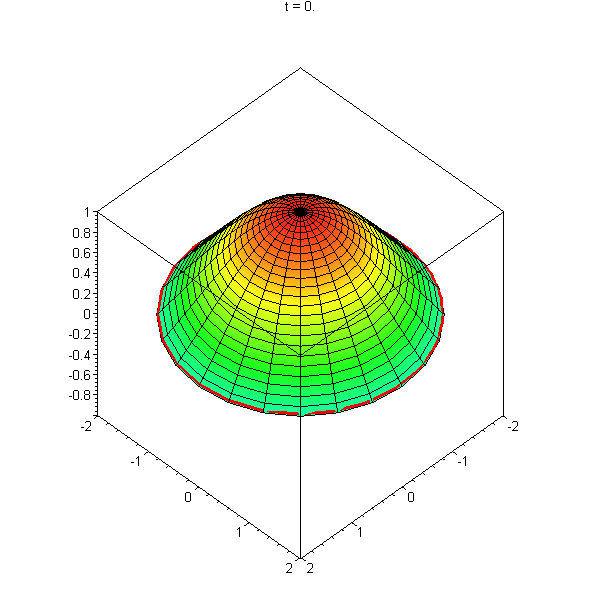

>	animate(wave,[uC(0,1)],t=0..P(0,1));

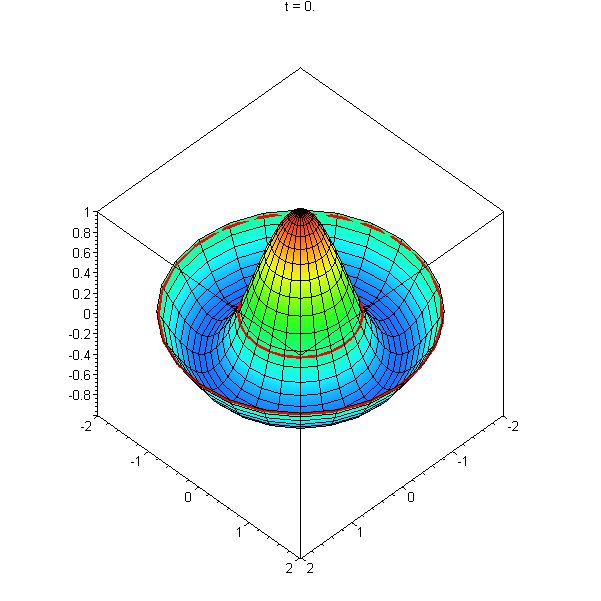

Here we map the second zero  of    to the radius  of the circle:

>	animate(wave,[uC(0,2)],t=0..P(0,2));

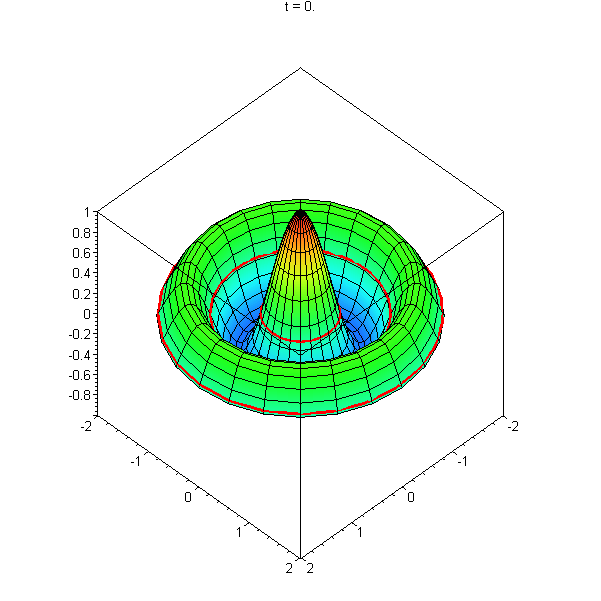

And the third:

>	animate(wave,[uC(0,3)],t=0..P(0,3));

Taking  introduces the cosine and sine terms:

>	'PhiC[1,1]'=PhiC(1,1);'PhiS[1,1]'=PhiS(1,1);

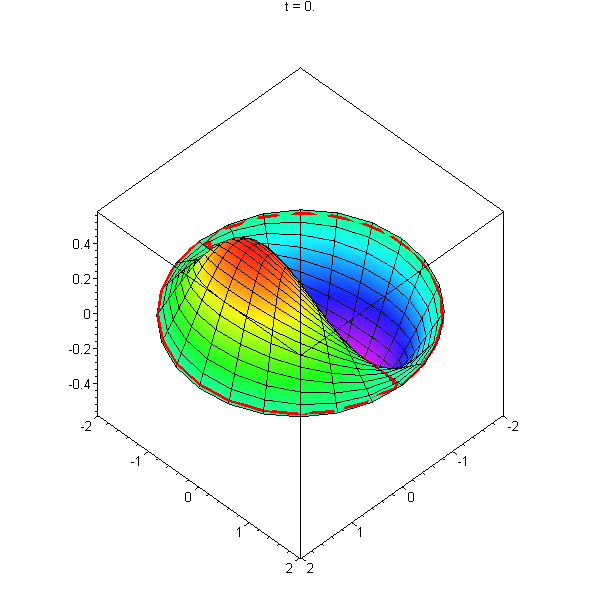

>	animate(wave,[uC(1,1)],t=0..P(1,1));

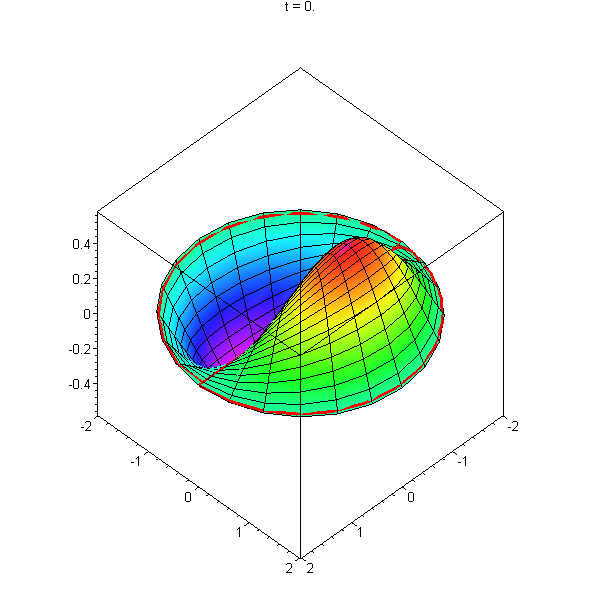

>	animate(wave,[uS(1,1)],t=0..P(1,1));

>	animate(wave,[uC(1,1)+uS(1,1)],t=0..P(1,1));

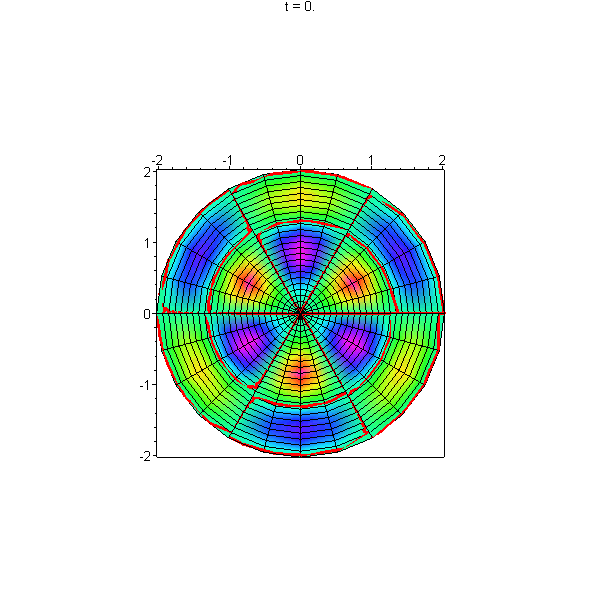

One can easily identify the type of the product solution from the picture of the nodal curve: three radial lines below tell us that , two circular lines tell us that , and since one of the nodal lines coinsides with the -axis (given by ), we know that the -term is a sine function:

>	display(animate(wave,[uS(3,2)],t=0..P(3,2)),insequence=true,orientation=[-90,0]);

Choosing eigenfunctions that have different eigenvalues results in "moving waves":

>	animate(wave,[uS(1,1)+0.2*uC(0,3)],t=0..2*P(1,1)*P(0,3));

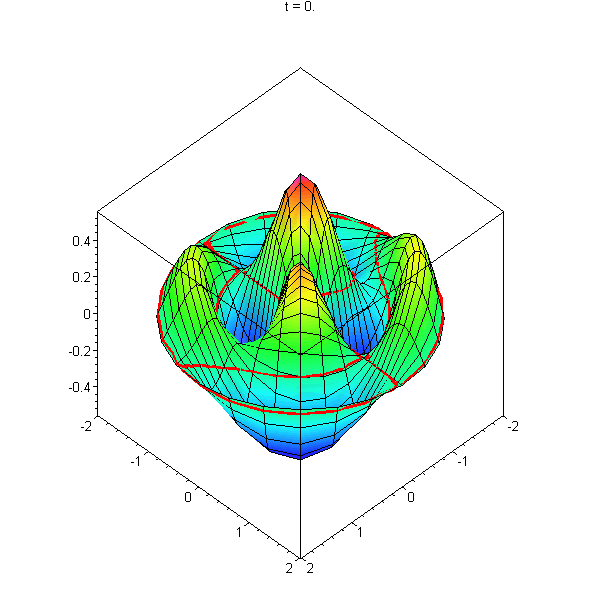

>	animate(wave,[uS(2,2)+0.3*uC(1,4)],t=0..2*P(2,2)*P(1,4));

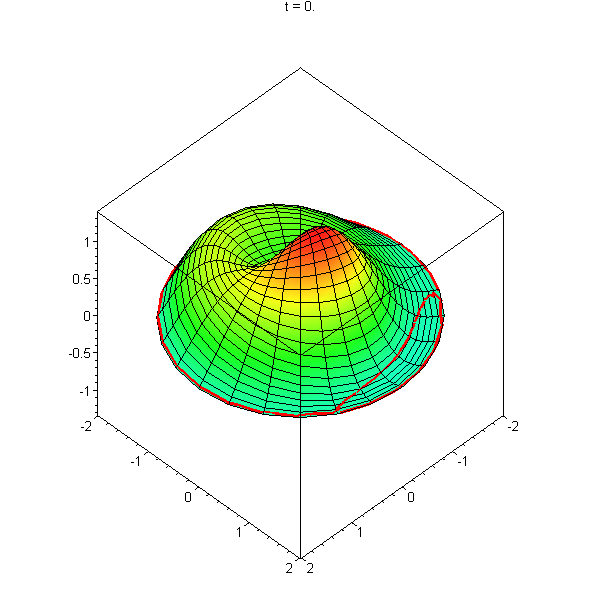

>	animate(wave,[uC(0,1)+0.8*uS(1,2)+0.3*uC(1,1)],t=0..P(0,1)*P(1,1)*P(1,2));

Clean-up:

>	a:='a':c:='c':

>

References

• Walter A. Strauss, Partial Differential Equations: An Introduction, Wiley, 1992
• Richard Haberman, Elementary Applied Partial Differential Equations, 3rd edition, Prentice Hall
• Stanley J. Farlow, Partial Differential Equations for Scientists and Engineers, Dover 1982
