TENSORS OF RELATIVISTIC ELECTRODYNAMICS WITH MAPLE

Alexei V. Tikhonenko

General Physics Department,
State Technical University of Nuclear Power Engineering,
Obninsk, Russia

futureprint@obninsk.com

This work develops algorithms of construction, calculation and transformation of physical vectors and tensors in relativistic electrodynamics with MAPLE.

1. Lorentz transformations

>	restart;

>	with(tensor):with(linalg):

Consider transformations of vectors and tensors with Lorentz transformations in four-dimensional pseudo-Euclidean space-time. We will use "tensor" and "linalg" packages for operations with vectors and tensors in four-dimensional space-time.

The first necessary step is creation of the metric tensor of four-dimensional pseudo-Euclidean space-time:

>	coord:=[t,x,y,z]; g11:=1: g22:=-1: g33:=-1: g44:=-1: g:=create([-1,-1],array(1..4,1..4,symmetric,sparse,[(1,1)=g11(r,theta),(2,2)=g22(r,theta),(3,3)=g33(r,theta),(4,4)=g44(r,theta)]));

(1.1)

Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mi(

(1.1)

>	g_matrix:=matrix([[1, 0, 0, 0], [0, -1, 0, 0], [0, 0, -1, 0], [0, 0, 0, -1]]); detg:=det(g_matrix);

(1.2)

>	`tensor/simp`:= proc(a) simplify(a); end: g_contr := invert(g, 'det_g');

(1.3)

Lorentz transformations (for two reference frames) are determined as

>	dim:=4; Coord_1:=[t,x,y,z]; Coord_2:=[t,x,y,z];

(1.4)

>	*CHANG:=[t=gamma(t-betax),x=gamma(x-betat) ,y=y,z=z];*

(1.5)

>	Jacobian(Coord_2,CHANG,tr,TR); op(tr); op(TR);

(1.6)

where

and V is relative velocity of reference frames in the line of x-axis.

Components of covariant vector

>	VECT:=create([-1],array([V[1],V[2],V[3], V[4]]));

(1.7)

will transform with Lorentz transformations as

VECT_trans:=create([-1],array([V_trans[1], V_trans[2],V_trans[3],V_trans[4]]));
get_compts(VECT_trans)=get_compts(collect(transform(VECT,CHANG,tr,TR),gamma));
get_compts(VECT_trans)[1]=get_compts(collect(transform(VECT,CHANG,tr,TR),gamma))[1];
get_compts(VECT_trans)[2]=get_compts(collect(transform(VECT,CHANG,tr,TR),gamma))[2];
get_compts(VECT_trans)[3]=get_compts(collect(transform(VECT,CHANG,tr,TR),gamma))[3];
get_compts(VECT_trans)[4]=get_compts(collect(transform(VECT,CHANG,tr,TR),gamma))[4];

(1.8)

Components of covariant tensor

>	TENS:=create([-1,-1],array(1..4,1..4,sparse,[[T[1,1],T[1,2],T[1,3],T[1,4]],[T[2,1],T[2,2],T[2,3],T[2,4]],[T[3,1],T[3,2],T[3,3],T[3,4]],[T[4,1],T[4,2],T[4,3],T[4,4]]]));

(1.9)

will transform with Lorentz transformations as

TENS_trans:=create([-1,-1],array(1..4,1..4,sparse,[[T_trans[1,1],T_trans[1,2],T_trans[1,3],T_trans[1,4]],[T_trans[2,1],T_trans[2,2],T_trans[2,3],T_trans[2,4]],[T_trans[3,1],T_trans[3,2],T_trans[3,3],T_trans[3,4]],[T_trans[4,1],T_trans[4,2],T_trans[4,3],T_trans[4,4]]]));
get_compts(TENS_trans)=get_compts(collect(transform(TENS,CHANG,tr,TR),gamma));
get_compts(TENS_trans)[1,1]=get_compts(collect(transform(TENS,CHANG,tr,TR),gamma))[1,1];
get_compts(TENS_trans)[1,2]=get_compts(collect(transform(TENS,CHANG,tr,TR),gamma))[1,2];
get_compts(TENS_trans)[2,4]=get_compts(collect(transform(TENS,CHANG,tr,TR),gamma))[2,4];

(1.10)

Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mfenced(Typesetting:-mrow(Typesetting:-mtable(Typesetting:-mtr(Typesetting:-mtd(Typesetting:-msub(Typesetting:-mi(

(1.10)

Components of the symmetrical covariant tensor

>	TENS_sym:=create([-1,-1],array(1..4,1..4,sparse,[[T[1,1],T[1,2],T[1,3],T[1,4]],[T[1,2],T[2,2],T[2,3],T[2,4]],[T[1,3],T[2,3], T[3,3],T[3,4]],[T[1,4],T[2,4],T[3,4],T[4,4]]]));

(1.11)

will transform with Lorentz transformations as

TENS_sym_trans:=create([-1,-1],array(1..4,1..4,sparse,[[T_trans[1,1],T_trans[1,2],T_trans[1,3],T_trans[1,4]],[T_trans[2,1],T_trans[2,2],T_trans[2,3],T_trans[2,4]],[T_trans[3,1],T_trans[3,2],T_trans[3,3],T_trans[3,4]],[T_trans[4,1],T_trans[4,2],T_trans[4,3],T_trans[4,4]]]));
get_compts(TENS_trans)=get_compts(collect(transform( TENS_sym,CHANG,tr,TR), [gamma,beta]));

(1.12)

TENS_sym_trans:=collect(simplify(subs (gamma =1/sqrt(1-beta^2),matrix([[(T[1,1]-2*beta*T [1,2]+ beta^2*T[2,2])*gamma^2, (beta^2*T[1,2]+(-T[1,1]-T[2,2])*beta+T[1,2])*gamma^2,(T[1,3]-beta*T[2,3])*gamma,(T[1,4]-beta*T[2,4])*gamma],[(beta^2* T[1,2]+(-T[1,1]-T[2,2])*beta +T[1,2])*gamma^2,(beta^2 *T[1,1]-2*beta*T[1,2] +T[2,2])*gamma^2,(-beta*T[1,3] +T[2,3])* gamma, -beta*T[1,4]+T[2,4]*gamma],[(T[1, 3]-beta* T[2,3])*gamma,(-beta*T[1,3] +T[2, 3])*gamma, T[3,3], T[3,4]], [(T[1,4]-beta*T[2,4])*gamma, (-beta*T[1,4]+T[2, 4])*gamma, T[3,4], T[4,4]]]))),beta) assuming (-beta^2+1)>0;

(1.13)

Components of the asymmetrical covariant tensor

>	TENS_as:=create([-1,-1],array(1..4,1..4 ,sparse ,[[0,T[1,2],T[1,3],T[1,4]],[-T[1, 2],0,T[2,3], T[2,4]],[-T[1,3],-T[2,3],0, T[3,4]],[-T[1,4],-T[2,4],-T[3,4],0]]));

(1.14)

will transform with Lorentz transformations as

TENS_as_trans:=create([-1,-1],array(1..4,1..4,sparse,[[0,T_trans[1,2],T_trans[1,3],T_trans[1,4]],[-T_trans[1,2],0,T_trans[2, 3],T_trans[2,4]],[-T_trans[1,3],-T_trans [2,3],0,T_trans[3,4]],[-T_trans[1,4],-T_trans[2,4],-T_trans[3,4],0]]));
get_compts(TENS_trans)=get_compts(simplify(collect(transform(TENS_as,CHANG,tr,TR),[gamma,beta])));

(1.15)

TENS_as_trans:=simplify(subs(gamma=1/sqrt (1-beta^2),matrix([[0, -T[1,2]*(-1+beta^2) *gamma^2,-(-T[1,3]+beta*T[2,3])*gamma,-(-T[1,4]+beta*T[2,4] )*gamma], [T[1,2]*(-1+ beta^2)*gamma^2, 0,-(beta* T[1,3]-T[2,3])* gamma, -(beta*T[1,4]-T[2,4])*gamma], [(-T[1,3]+beta*T[2,3])*gamma, (beta*T[1,3]-T[2,3] )*gamma, 0, T[3,4]], [(-T[1,4]+beta *T[2,4])*gamma, (beta*T[1,4]-T[2,4]) *gamma,-T[3,4], 0]]))) assuming (-beta^2+1)>0;

(1.16)

Typesetting:-mrow(Typesetting:-mi(

2. 4-velocity ? 4-acceleration

Consider 4-radius-vector of particle moving in four-dimensional space-time:

>	R(t):=create([-1],array([x[1](t),x[2](t),x[3] (t),x[4](t)]));

(2.1)

Consider 4-velocity of particle in four-dimensional space-time:

V(t):=create([-1],array([v[1](t),v[2](t), v[3](t),v[4](t)]));
V(t):=create([-1],array([1/sqrt(1-(v[2](t)^2+v[3](t)^2+v[4](t)^2)/c^2)/c*diff(x[1](t),t),1/sqrt(1-(v[2](t)^2+v[3](t)^2+v[4](t)^2)/c^2)/c*diff(x[2](t),t),1/sqrt(1-(v[2](t)^2+v[3](t)^2+v[4](t)^2)/c^2)/c*diff(x[3](t),t),1/sqrt(1-(v[2](t)^2+v[3](t)^2+ v[4](t)^2)/c^2)/ c*diff(x[4](t),t)]));
V(t):=create([-1],array([1/sqrt(1-(v[2](t)^2+v[3](t)^2+v[4](t)^2)/c^2),1/sqrt(1-(v[2](t)^2+v[3](t)^2+v[4](t)^2)/c^2)/c*v[2](t),1/sqrt(1-(v[2](t)^2+v[3](t)^2+v[4](t) ^2)/c^2)/c*v[3](t),1/sqrt(1-(v[2](t)^2+v[3](t)^2+v[4](t)^2)/c^2)/c*v[4](t)]));

(2.2)

Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mi(

(2.2)

>	V[1](t):=get_compts(V(t))[1]; V[2](t):=get_compts(V(t))[2]; V[3](t):=get_compts(V(t))[3]; V[4](t):=get_compts(V(t))[4];

(2.3)

Square of 4-velocity is

>	V_sqw=simplify(subs(beta=sqrt(v[2](t)^2+ v[3](t)^2 +v[4](t)^2)/c,prod(prod(V(t),V(t)) ,g_contr,[1,1],[2,2])));

(2.4)

Consider 4-acceleration of particle in four-dimensional space-time:

Accl[1](t):=1/sqrt(1-(v[2](t)^2+v[3](t)^2 +v[4](t)^2)/c^2)/c*diff(V[1](t),t);
Accl[2](t):=1/sqrt(1-(v[2](t)^2+v[3](t)^2+ v[4](t)^2)/c^2)/c*diff(V[2](t),t);
Accl[3](t):=1/sqrt(1-(v[2](t)^2+v[3](t)^2+ v[4](t)^2)/c^2)/c*diff(V[3](t),t);
Accl[4](t):=1/sqrt(1-(v[2](t)^2+v[3](t)^2+v [4](t)^2)/c^2)/c*diff(V[4](t),t);

`:=`(Accl[1](t), `+`(`*`(`/`(1, 2), `*`(`/`(`*`(`+`(`*`(2, `*`(v[2](t), `*`(diff(v[2](t), t)))), `*`(2, `*`(v[3](t), `*`(diff(v[3](t), t)))), `*`(2, `*`(v[4](t), `*`(diff(v[4](t), t)))))), `*`(`^`(`+`...

(2.5)

`:=`(Accl[2](t), `/`(`*`(`+`(`*`(`/`(1, 2), `*`(`/`(`*`(v[2](t), `*`(`+`(`*`(2, `*`(v[2](t), `*`(diff(v[2](t), t)))), `*`(2, `*`(v[3](t), `*`(diff(v[3](t), t)))), `*`(2, `*`(v[4](t), `*`(diff(v[4](t),...

(2.5)

`:=`(Accl[3](t), `/`(`*`(`+`(`*`(`/`(1, 2), `*`(`/`(`*`(v[3](t), `*`(`+`(`*`(2, `*`(v[2](t), `*`(diff(v[2](t), t)))), `*`(2, `*`(v[3](t), `*`(diff(v[3](t), t)))), `*`(2, `*`(v[4](t), `*`(diff(v[4](t),...

(2.5)

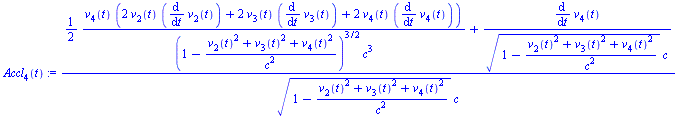

`:=`(Accl[4](t), `/`(`*`(`+`(`*`(`/`(1, 2), `*`(`/`(`*`(v[4](t), `*`(`+`(`*`(2, `*`(v[2](t), `*`(diff(v[2](t), t)))), `*`(2, `*`(v[3](t), `*`(diff(v[3](t), t)))), `*`(2, `*`(v[4](t), `*`(diff(v[4](t),...

(2.5)

>	Accl:=create([-1],array([Accl[1](t),Accl[2](t),Accl[3](t),Accl[4](t)]));

(2.6)

The scalar product of 4-velocity ? 4-acceleration is equal to

>	prod(prod(V(t),Accl),g_contr,[1,1],[2,2]);

(2.7)

This value means orthogonality of 4-velocity ? 4-acceleration.

Another form of 4-acceleration is:

Accl[1]:=1/((1-beta^2)^2)/(c^3)*(v[2] (t)*w[2](t) +v[3](t)*w[3](t)+v[4](t)* w[4](t));
Accl[2]:=1/(1-beta^2)^2/c^4*v[2](t)*(v[2](t) *w[2](t)+v[3](t)*w[3](t)+v[4](t)*w[4](t))+1/(1-beta^2)/c^2*w[2](t);
Accl[3]:=1/(1-beta^2)^2/c^4*v[3](t)*(v[2](t) *w[2](t)+v[3](t)*w[3](t)+v[4](t)*w[4](t))+1/(1-beta^2)/c^2*w[3](t);
Accl[4]:=1/(1-beta^2)^2/c^4*v[4](t)*(v[2](t)* w[2](t)+v[3](t)*w[3](t)+v[4](t)*w[4](t))+1/(1-beta^2)/c^2*w[4](t);
Accl:=create([-1],array([Accl[1],Accl[2], Accl[3],Accl[4]]));

(2.8)

3. energy-momentum vector

Consider 4-velocity

V[1](t):=1/((1-(v[2](t)^2+v[3](t)^2+ v[4](t)^2)/c^2)^(1/2));
V[2](t):=1/(1-(v[2](t)^2+v[3](t)^2+ v[4](t)^2)/c^2)^(1/2)/c*v[2](t);
V[3](t):=1/(1-(v[2](t)^2+v[3](t)^2+ v[4](t)^2)/c^2)^(1/2)/c*v[3](t);
V[4](t):=1/(1-(v[2](t)^2+v[3](t)^2+ v[4](t)^2)/c^2)^(1/2)/c*v[4](t);
V(t):=create([-1],array([V[1](t),V[2](t), V[3](t),V[4](t)]));

(3.1)

and define 4-energy-momentum vector as

>	P[1](t):=cmV[1](t); P[2](t):=cmV[2](t); P[3](t):=cmV[3](t); P[4](t):=cmV[4](t); P(t):=create([-1],array([P[1](t),P[2](t),P[3](t), P[4](t)]));

(3.2)

Square of 4-energy-momentum vector is:

>	P_sqw=prod(prod(P(t),P(t)),g_contr,[1,1], [2,2]);

(3.3)

As another form of 4-energy-momentum vector is

>	P_:=create([-1],array([E/c,p[2],p[3], p[4]]));

(3.4)

we have

>	prod(prod(P_,P_),g_contr,[1,1],[2,2])= prod(prod(P(t),P(t)),g_contr,[1,1],[2,2]);

(3.5)

4-energy-momentum vectorwill transform with Lorentz transformations as

>	P:=create([-1],array([E/c,p[2],p[3],p[4]])); P_trans_:=create([-1],array([E_trans/c,p_trans[2], p_trans[3],p_trans[4]])); P_trans:=collect(transform(P,CHANG,tr,TR),gamma);

(3.6)

>	get_compts(P_trans_)[1]=get_compts (P_trans)[1]; get_compts(P_trans_)[2]=get_compts (P_trans)[2]; get_compts(P_trans_)[3]=get_compts (P_trans)[3]; get_compts(P_trans_)[4]=get_compts (P_trans)[4];

(3.7)

Make sure that square of 4-energy-momentum vector is invariant relatively to Lorentz transformations:

>	P_sqw:=get_compts(prod(prod(P,P),g_contr, [1,1],[2,2]));

(3.8)

>	P_trans_sqw:=get_compts(prod(prod(P_trans,P_trans),g_contr,[1,1],[2,2])); P_trans_sqw:=simplify(subs(gamma=1/sqrt (1-beta^2),(gamma^2E^2+gamma^2beta^2* p[2]^2c^2-gamma^2beta^2E^2-gamma^2 p[2]^2c^2-p[3]^2c^2-p[4]^2*c^2)/c^2));

(3.9)

and

Differentiate 4-energy-momentum vector by interval:

P[1](t):=c*m/(1-(v[2](t)^2+v[3](t)^2+ v[4](t)^2) /c^2)^(1/2):
P[2](t):=m/(1-(v[2](t)^2+v[3](t)^2+ v[4](t)^2) /c^2)^(1/2)*v[2](t):
P[3](t):=m/(1-(v[2](t)^2+v[3](t)^2+ v[4](t)^2) /c^2)^(1/2)*v[3](t):
P[4](t):=m/(1-(v[2](t)^2+v[3](t)^2+ v[4](t)^2) /c^2)^(1/2)*v[4](t):
Dif_P(t):=create([-1],array([1/sqrt(1-(v[2](t)^ 2+v[3](t)^2+v[4](t)^2)/c^2)/c *diff(P[1](t),t),1/sqrt(1-(v[2](t)^2+ v[3](t)^2+v[4](t)^2)/c^2)/c* diff(P[2] (t),t),1/sqrt(1-(v[2](t)^2+v[3](t) ^2+v[4](t)^2)/c^2 )/c*diff(P[3](t), t),1/sqrt(1-(v[2](t)^2+v[3](t)^2+ v[4](t)^2)/c^2)/c* diff(P[4](t),t)]));

(3.10)

>	DP[1]:=get_compts(Dif_P(t))[1]; DP[2]:=get_compts(Dif_P(t))[2]; DP[3]:=get_compts(Dif_P(t))[3]; DP[4]:=get_compts(Dif_P(t))[4];

`:=`(DP[1], `+`(`*`(`/`(1, 2), `*`(`/`(`*`(m, `*`(`+`(`*`(2, `*`(v[2](t), `*`(diff(v[2](t), t)))), `*`(2, `*`(v[3](t), `*`(diff(v[3](t), t)))), `*`(2, `*`(v[4](t), `*`(diff(v[4](t), t))))))), `*`(`^`(...

(3.11)

`:=`(DP[2], `/`(`*`(`+`(`*`(`/`(1, 2), `*`(`/`(`*`(m, `*`(v[2](t), `*`(`+`(`*`(2, `*`(v[2](t), `*`(diff(v[2](t), t)))), `*`(2, `*`(v[3](t), `*`(diff(v[3](t), t)))), `*`(2, `*`(v[4](t), `*`(diff(v[4](t...

(3.11)

`:=`(DP[3], `/`(`*`(`+`(`*`(`/`(1, 2), `*`(`/`(`*`(m, `*`(v[3](t), `*`(`+`(`*`(2, `*`(v[2](t), `*`(diff(v[2](t), t)))), `*`(2, `*`(v[3](t), `*`(diff(v[3](t), t)))), `*`(2, `*`(v[4](t), `*`(diff(v[4](t...

(3.11)

`:=`(DP[4], `/`(`*`(`+`(`*`(`/`(1, 2), `*`(`/`(`*`(m, `*`(v[4](t), `*`(`+`(`*`(2, `*`(v[2](t), `*`(diff(v[2](t), t)))), `*`(2, `*`(v[3](t), `*`(diff(v[3](t), t)))), `*`(2, `*`(v[4](t), `*`(diff(v[4](t...

(3.11)

These formulas can be rewritten as:

DP[1]:=m/(1-beta^2)^2/c^2*(v[2](t)*w[2] (t)+v[3] (t)*w[3](t)+v[4](t)*w[4](t));
DP[2]:=m/(1-beta^2)^2/c^3*v[2](t)*(v[2] (t)*w[2](t)+v[3](t)*w[3](t)+v[4](t)* w[4](t))+1/(1-beta^2)/c*w[2](t);
DP[3]:=m/(1-beta^2)^2/c^3*v[3](t)*(v[2](t)*w[2] (t)+v[3](t)*w[3](t)+v[4] (t)*w[4](t))+1/(1-beta^2)/c*w[3](t);
DP[4]:=m/(1-beta^2)^2/c^3*v[4](t)*(v[2](t)*w[2] (t)+v[3](t)*w[3](t)+v[4] (t)*w[4](t))+1/(1-beta^2)/c*w[4](t);

(3.12)

Therefore, we have that derivatives of components of 4-energy-momentum vector differ from accel-eration components by the factor m/c.

Now we denote derivatives of components of 4-energy-momentum vector by

f[1]:=m/(1-beta^2)^2/c^3*(v[2]*w[2]+v[3]*w[3]+v[4]*w[4]);
f[2]:=m/(1-beta^2)^2/c^4*v[2]*(v[2]*w[2]+v[3]*w[3]+v[4]*w[4])+m/(1-beta^2)/c^2* w[2];
f[3]:=m/(1-beta^2)^2/c^4*v[3]*(v[2]*w[2]+v[3]*w[3]+v[4]*w[4])+m/(1-beta^2) /c^2*w[3];
f[4]:=m/(1-beta^2)^2/c^4*v[4]*(v[2]*w[2]+v[3]*w[3]+v[4]*w[4])+m/(1-beta^2 )/c^2*w[4];

(3.13)

whence

and 4-force vector is:

>	F:=create([-1],array([f[1],f[2],f[3],f[4]]));

(3.14)

>	*F:=create([-1],array([(v[2]f[2]+v[3]f[3]+v[4]f[4])/c,f[2],f[3],f[4]])):**

4. Tensor of electromagnetic field

Consider covariant 4-tensor of electromagnetic field:

>	T[1,2]:=E[1]; T[1,3]:=E[2]; T[1,4]:=E[3]; T[2,3]:=-H[3]; T[2,4]:=H[2]; T[3,4]:=-H[1]; F:=create([-1,-1],array(1..4,1..4,sparse,[[0,T[1,2],T[1,3],T[1,4]],[-T[1,2],0,T[2,3],T[2,4]],[-T[1,3],-T[2,3],0,T[3,4]],[-T[1,4],-T[2,4],-T[3,4],0]]));

(4.1)

Contravariant tensor of electromagnetic field is:

>	F_contr:=raise(g_contr,raise(g_contr,F,1),2);

(4.2)

Dual tensor to covariant tensor of electromagnetic field is:

>	Levi_Civita (detg,4,cov_LC,con_LC); F_star:=dual(con_LC,F,[1,2]);

(4.3)

Dual tensor to contravariant tensor of electromagnetic field is:

>	F_star_cov:=lower(g,lower(g,F_star,1),2);

(4.4)

Calculate invariants of electromagnetic field:

>	INV[1]:=get_compts(prod(F,F_contr,[1,1], [2,2]));

(4.5)

>	INV[2]:=get_compts(prod(F,F_star,[1,1], [2,2]));

(4.6)

Components of tensor of electromagnetic field will transform with Lorentz transformations as

>	dim:=4: Coord_1:=[t,x,y,z]; Coord_2:=[t,x,y,z]; CHANG:=[t=gamma(t-betax),x=gamma(x-betat),y=y,z=z]; Jacobian(Coord_2,CHANG,tr,TR);op(tr):op(TR);

(4.7)

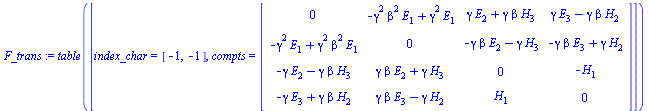

>	F_trans:=transform(F,CHANG,tr,TR);

(4.8)

matrix([[0,E_trans[1],E_trans[2],E_trans[3]],[-E_trans[1],0,-H_trans[3],H_trans[2]],[-E_trans[2],H[3],0,-H_trans[1]],[-E_trans[3],-H_trans[2],H_trans[1],0]])=simplify(subs(gamma=1/sqrt(1-beta^2),matrix([[0,-gamma^2*beta^2*E[1]+gamma^2*E[1],gamma*E[2]+gamma*beta*H[3],gamma*E[3]-gamma*beta*H[2]],[-gamma^2*E[1]+gamma^2*beta^2*E[1],0,-gamma*beta*E[2]-gamma*H[3],-gamma*beta*E[3]+gamma*H[2]],[-gamma*E[2] -gamma*beta*H[3],gamma*beta*E[2]+gamma*H [3],0,-H[1]],[-gamma*E[3]+gamma*beta*H[2], gamma*beta*E[3]-gamma*H[2],H[1],0]])));

(4.9)

5. Energy-momentum tensor of electromagnetic field

Consider covariant 4-tensor of electromagnetic field:

>	T[1,2]:=E[1]; T[1,3]:=E[2]; T[1,4]:=E[3]; T[2,3]:=-H[3]; T[2,4]:=H[2]; T[3,4]:=-H[1]; F:=create([-1,-1],array(1..4,1..4,sparse, [[0,T[1,2],T[1,3],T[1,4]],[-T[1,2],0,T[2, 3],T[2,4]],[-T[1,3],-T[2,3],0,T[3,4]],[-T[1,4],-T[2,4],-T[3,4],0]]));

(5.1)

Mixed and contravariant 4-tensors of electromagnetic field are:

>	F_:=raise(g_contr,F,1); F_contr:=raise(g_contr,raise(g_contr,F,1),2);

(5.2)

Calculate miscellaneous functions:

>	T1:=prod(F_contr,F_,[2,2]); T2:=prod(F,F_contr,[1,1],[2,2]);

(5.3)

>	*T2:=-2E[1]^2-2E[2]^2-2E[3]^2+2H[3]^2+2H[2]^2+2H[1]^2;*

(5.4)

So contravariant energy-momentum tensor of electromagnetic field is

T[1,1]:=simplify(1/4/Pi*(-get_compts(T1) [1,1]+ 1/4*get_compts(g_contr)[1,1]*T2));
T[1,2]:=simplify(1/4/Pi*(-get_compts(T1) [1,2]+ 1/4*get_compts(g_contr)[1,2]*T2));
T[1,3]:=simplify(1/4/Pi*(-get_compts(T1) [1,3]+1/4*get_compts(g_contr)[1,3]*T2));
T[1,4]:=simplify(1/4/Pi*(-get_compts(T1) [1,4]+1/4*get_compts(g_contr)[1,4]*T2));
T[2,2]:=simplify(1/4/Pi*(-get_compts(T1) [2,2]+1/4*get_compts(g_contr)[2,2]*T2));
T[2,3]:=simplify(1/4/Pi*(-get_compts(T1) [2,3] +1/4*get_compts(g_contr)[2,3]*T2));
T[2,4]:=simplify(1/4/Pi*(-get_compts(T1) [2,4]+ 1/4*get_compts(g_contr)[2,4]*T2));
T[3,3]:=simplify(1/4/Pi*(-get_compts(T1) [3,3]+ 1/4*get_compts(g_contr)[3,3]*T2));
T[3,4]:=simplify(1/4/Pi*(-get_compts(T1) [3,4]+ 1/4*get_compts(g_contr)[3,4]*T2));
T[4,4]:=simplify(1/4/Pi*(-get_compts(T1) [4,4]+ 1/4*get_compts(g_contr)[4,4]*T2));

(5.5)

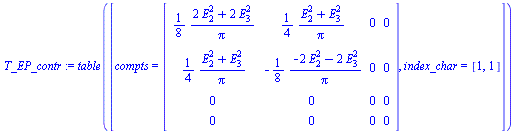

>	T_EP_contr:=create([1,1],array(1..4,1..4,sparse,[[T[1,1],T[1,2],T[1,3],T[1,4]],[T[1,2],T[2,2],T[2,3],T[2,4]],[T[1,3],T[2,3],T[3,3],T[3,4]],[T[1,4],T[2,4],T[3,4],T[4,4]]]));

(5.6)

or in standart denotes

w=1/8*(E[1]^2+E[2]^2+E[3]^2+H[3]^2+H[2]^2+H[1]^2)/Pi;
T[1,1]:=w;
S[1]=c*1/4*1/Pi*(E[2]*H[3]-E[3]*H[2]);
T[1,2]:=S[1]/c;
S[2]=-1/4*(E[1]*H[3]-E[3]*H[1])/Pi;
T[1,3]:=S[2]/c;
S[3]=1/4*1/Pi*(E[1]*H[2]-E[2]*H[1]);
T[1,4]:=S[3]/c;
sigma[2,2]=-1/8*(E[1]^2-H[3]^2-H[2]^2-E[2]^2-E[3]^2+H[1]^2)/Pi;
T[2,2]:=sigma[2,2];
sigma[2,3]=-1/4*(E[1]*E[2]+H[2]*H[1])/Pi;
T[2,3]:=sigma[2,3];
sigma[2,4]=-1/4*(E[1]*E[3]+H[3]*H[1])/Pi;
T[2,4]:=sigma[2,4];
sigma[3,3]=1/8*(-E[2]^2+H[3]^2+H[1] ^2+E[1]^2+E[3]^2-H[2]^2)/Pi;
T[3,3]:=sigma[3,3];
sigma[3,4]=-1/4*(E[2]*E[3]+H[3]*H[2])/Pi;
T[3,4]:=sigma[3,4];
sigma[4,4]=1/8*(-E[3]^2+H[2]^2+H[1] ^2+E[1]^2 +E[2]^2-H[3]^2)/Pi;
T[4,4]:=sigma[4,4];

(5.7)

>	T_EP_contr:=create([1,1],array(1..4,1..4,sparse,[[T[1,1],T[1,2],T[1,3],T[1,4]],[T[1,2],T[2,2],T[2,3],T[2,4]],[T[1,3],T[2,3],T[3,3],T[3,4]],[T[1,4],T[2,4],T[3,4],T[4,4]]]));

(5.8)

Covariant energy-momentum tensor of electromagnetic field is

>	T_EP:=lower(g,lower(g,T_EP_contr,1),2);

(5.9)

Components of energy-momentum tensor will transform with Lorentz transformations as

>	dim:=4: Coord_1:=[t,x,y,z]; Coord_2:=[t,x,y,z]; CHANG:=[t=gamma(t-betax),x=gamma(x-betat),y=y,z=z]; Jacobian(Coord_2,CHANG,tr,TR);op(tr):op(TR);

(5.10)

>	T_EP_trans:=collect(transform(T_EP,CHANG, tr, TR),[gamma,beta,c]);

(5.11)

T_EP_trans[1,1]=get_compts(T_EP_trans)[1,1];
T_EP_trans[1,2]=get_compts(T_EP_trans)[1,2];
T_EP_trans[1,3]=get_compts(T_EP_trans)[1,3];
T_EP_trans[1,4]=get_compts(T_EP_trans)[1,4];
T_EP_trans[2,2]=get_compts(T_EP_trans)[2,2];
T_EP_trans[2,3]=get_compts(T_EP_trans)[2,3];
T_EP_trans[2,4]=get_compts(T_EP_trans)[2,4];
T_EP_trans[3,3]=get_compts(T_EP_trans)[3,3];
T_EP_trans[3,4]=get_compts(T_EP_trans)[3,4];
T_EP_trans[4,4]=get_compts(T_EP_trans)[4,4];

(5.12)

So energy density (w), components of energy flux density vector (S) and components of Maxwell stress tensor () will transform as

w_trans=(sigma[2,2]*beta^2+2*S[1]/c*beta+ w)*gamma^2;
S_trans[1]=(-S[1]/c*beta^2+(-w-sigma[2,2]) *beta-S[1]/c)*gamma^2;
S_trans[2]=(-sigma[2,3]*beta-S[2]/c)*gamma;
S_trans[3]=(-sigma[2,4]*beta-S[3]/c)*gamma;
sigma_trans[2,2]=(w*beta^2+2*S[1]/c*beta+sigma[2,2])*gamma^2;
sigma_trans[2,3]=(S[2]/c*beta+sigma[2,3])*gamma;
sigma_trans[2,4]=(S[3]/c*beta+sigma[2,4])*gamma;
sigma_trans[3,3]=sigma[3,3];
sigma_trans[3,4]=sigma[3,4];
sigma_trans[4,4]=sigma[4,4];

(5.13)

6. Energy-momentum tensor of macroscopic particles

Consider energy-momentum tensor of macroscopic particles:

>	w:=epsilon; S[1]:=0; S[2]:=0; S[3]:=0; sigma[2,2]:=p; sigma[2,3]:=0; sigma[2,4]:=0; sigma[3,3]:=p; sigma[3,4]:=0; sigma[4,4]:=p;

(6.1)

Components of energy-momentum tensor of macroscopic particleswill transform with Lorentz transformations as

(6.2)

or in standart denotes

w_trans=(sigma[2,2]*beta^2+2*S[1]/c*beta+w)*gamma^2;
S_trans[2]=(-S[1]/c*beta^2+(-w-sigma[2,2]) *beta-S[1]/c)*gamma^2;
S_trans[3]=(-sigma[2,3]*beta-S[2]/c)*gamma;
S_trans[4]=(-sigma[2,4]*beta-S[3]/c)*gamma;
sigma_trans[2,2]=(w*beta^2+2*S[1]/c*beta+sigma[2,2])*gamma^2;
sigma_trans[2,3]=(S[2]/c*beta+sigma[2,3])*gamma;
sigma_trans[2,4]=(S[3]/c*beta+sigma[2,4])*gamma;
sigma_trans[3,3]=sigma[3,3];
sigma_trans[3,4]=sigma[3,4];
sigma_trans[4,4]=sigma[4,4];

(6.3)

7. Energy-momentum tensor of plane electromagnetic wave

Consider plane electromagnetic wave with filed vectors:

>	H[1]:=0; E[1]:=0; H[2]:=-E[3]; H[3]:=E[2];

(7.1)

So energy-momentum tensor of plane electromagnetic wave is

T_EP_contr:=TABLE([compts=matrix([[1/8*(E[1]^2+E[2]^2+E[3]^2+H[3]^2+H[2]^2+H[1]^2)/Pi,1/4*1/Pi*(E[2]*H[3]-E[3]*H[2]),-1/4*(E[1]*H[3]-E[3]*H[1])/Pi,1/4*1/Pi*(E[1]*H[2]-E[2]*H[1])],[1/4*1/Pi*(E[2]*H[3]-E[3]*H[2]),-1/8*(E[1]^2-H[3]^2-H[2]^2-E[2]^2-E[3]^2+H[1]^2)/Pi,-1/4*(E[1]*E[2]+H[2]*H[1])/Pi,-1/4*(E[1]*E[3]+H[3]*H[1])/Pi],[-1/4*(E[1]*H[3]-E[3]*H[1])/Pi,-1/4*(E[1]*E[2]+H[2]*H[1])/Pi,1/8*(-E[2]^2+H[3]^2+H[1]^2+E[1]^2+E[3]^2-H[2]^2)/Pi,-1/4*(E[2]*E[3]+H[3]*H[2])/Pi],[1/4*1/Pi*(E[1]*H[2]-E[2]*H[1]),-1/4*(E[1]*E[3]+H[3]*H[1])/Pi,-1/4*(E[2]*E[3]+H[3]*H[2])/Pi,1/8*(-E[3]^2+H[2]^2+H[1]^2+E[1]^2+E[2]^2-H[3]^2)/Pi]]), index_char=[1,1]]);

(7.2)

w:=1/4*(E[2]^2+E[3]^2)/Pi; S[2]:=c*w; S[3]:=0; S[4]:=0; sigma[2,2]:=w;
sigma[2,3]:=0; sigma[2,4]:=0; sigma[3,3]:=0; sigma[3,4]:=0; sigma[4,4]:=0; p:=0;
T_EP := TABLE([index_char = [-1, -1], compts = matrix([[w, -S[1]/c, -S[2]/c, -S[3]/c], [-S[1]/c, sigma[2,2], sigma[2,3], sigma[2,4]], [-S[2]/c, sigma[2,3], sigma[3,3], sigma[3,4]], [-S[3]/c, sigma[2,4], sigma[3,4], sigma[4,4]]])]);

(7.3)

8. General Lorentz transformations

Consider general Lorentz transformations.

>	restart;

>	with(tensor):with(linalg):

g11:=1: g22:=-1: g33:=-1: g44:=-1:
g:=create([-1,-1],array(1..4,1..4,symmetric,sparse,[(1,1)=g11(r,theta),(2,2)=g22(r,theta),(3,3)=g33(r,theta),(4,4)=g44(r,theta)]));
g_matrix:=matrix([[1, 0, 0, 0], [0, -1, 0, 0], [0, 0, -1, 0], [0, 0, 0, -1]]);
detg:=det(g_matrix);
`tensor/simp`:= proc(a) simplify(a); end:
g_contr := invert(g, 'det_g');

(8.1)

>	dim:=4: Coord_1:=[t,x,y,z]; Coord_2:=[t,x,y,z];

(8.2)

gamma=1/sqrt(1-(beta[1]^2+beta[2]^2 +beta [3]^2));
CHANG:=[t=gamma*(t-(beta[1]*x+beta[2]*y+ beta[3]*z)),x=x+(gamma-1)*beta[1]*(beta[1]*x+beta[2]*y+beta[3]*z)/(beta[1]^2+beta [2]^2+beta[3]^2)+gamma*beta[1]*t,y=y+(gamma-1)*beta[2]*(beta[1]*x+beta[2]*y+beta[3]*z)/(beta[1]^2+beta[2]^2+beta[3]^2)+gamma*beta[2]*t,z=z+(gamma-1)*beta[3]*(beta[1]*x+beta[2]*y+beta[3]*z)/(beta[1]^2+beta[2]^2+beta[3]^2)+gamma*beta[3]*t];

(8.3)

>	Jacobian(Coord_2,CHANG,tr,TR); op(tr): op(TR);

(8.4)

Components of covariant vector will transform with Lorentz transformations as

>	VECT:=create([-1],array([V[1],V[2],V[3], V[4]]));

(8.5)

VECT_trans:=create([-1],array([V_trans [1], V_trans[2],V_trans[3],V_trans[4]]));
get_compts(VECT_trans)=get_compts(collect(transform(VECT,CHANG,tr,TR),gamma)):
get_compts(VECT_trans)[1]=get_compts(collect(transform(VECT,CHANG,tr,TR),gamma))[1];
get_compts(VECT_trans)[2]=get_compts(collect(transform(VECT,CHANG,tr,TR),gamma))[2];
get_compts(VECT_trans)[3]=get_compts(collect(transform(VECT,CHANG,tr,TR),gamma))[3];
get_compts(VECT_trans)[4]=get_compts(collect(transform(VECT,CHANG,tr,TR),gamma))[4];

(8.6)

Components of covariant tensor will transform with Lorentz transformations as

>	TENS:=create([-1,-1],array(1..4,1..4,sparse,[[T[1,1],T[1,2],T[1,3],T[1,4]],[T[2,1],T[2,2],T[2,3],T[2,4]],[T[3,1],T[3,2],T[3,3],T[3,4]],[T[4,1],T[4,2],T[4,3],T[4,4]]]));

(8.7)

TENS_trans:=create([-1,-1],array(1..4,1.. 4,sparse,[[T_trans[1,1],T_trans[1,2],T_trans[1,3],T_trans[1,4]],[T_trans[2,1],T_trans[2,2],T_trans[2,3],T_trans[2,4]],[T_trans[3,1],T_trans[3,2],T_trans[3,3],T_trans[3,4]],[T_trans[4,1],T_trans[4,2],T_trans[4,3],T_trans[4,4]]]));
get_compts(TENS_trans)=get_compts(collect(transform(TENS,CHANG,tr,TR),gamma)):

get_compts(TENS_trans)[1,1]=get_compts(collect(transform(TENS,CHANG,tr,TR),gamma))[1,1];
get_compts(TENS_trans)[1,2]=get_compts(collect(transform(TENS,CHANG,tr,TR),gamma))[1,2];
get_compts(TENS_trans)[2,4]=get_compts(collect(transform(TENS,CHANG,tr,TR),gamma))[2,4];

(8.8)

For symmetrical tensor we have transformations:

>	TENS_sym:=create([-1,-1],array(1..4,1..4,sparse,[[Tau[1,1],Tau[1,2],Tau[1,3],Tau[1,4]],[Tau[1,2],Tau[2,2],Tau[2,3],Tau[2,4]],[Tau[1,3],Tau[2,3],Tau[3,3],Tau[3,4]],[Tau[1,4],Tau[2,4],Tau[3,4],Tau[4,4]]]));

(8.9)

(8.10)

For asymmetrical tensor we have transformations:

>	TENS_as:=create([-1,-1],array(1..4, 1..4,sparse, [[0,Tau[1,2],Tau[1,3], Tau[1,4]],[-Tau[1,2],0,Tau [2,3],Tau[2, 4]],[-Tau[1,3],-Tau[2,3],0,Tau[3,4]],[-Tau[1,4],-Tau[2,4],-Tau[3,4],0]]));

(8.11)

TENS_as_trans:=create([-1,-1],array(1..4, 1..4, sparse,[[0,T_trans[1,2],T_trans [1,3],T_trans[1,4]],[-T_trans[1,2],0, T_trans[2,3], T_trans[2,4]],[-T_trans[1,3] ,-T_trans[2,3],0, T_trans[3,4]],[-T_trans [1,4],-T_trans[2,4],-T_trans[3,4],0]]));
get_compts(TENS_trans)=get_compts(simplify(collect(transform(TENS_as,CHANG,tr,TR), [gamma,beta]))):

(8.12)

9. Tensor of moment of momentum

Define antisymmetric tensor of moment of momentum. We need to determine 4-radius-vector of particle and 4-energy-momentum vector:

>	R4(t):=create([-1],array([x[1],x[2],x[3], x[4]])); gamma=1/sqrt(1-(beta[1]^2+beta[2]^2+beta[3]^2)); P4(t):=create([-1],array([mcgamma,mgamma v[2],mgammav[3],mgammav[4]]));

(9.1)

Define miscellaneous functions

>	MOM1:=prod(R4(t),P4(t)); MOM2:=prod(P4(t),R4(t));

(9.2)

and create covariant antisymmetric tensor of moment of momentum:

T[1,2]:=collect(get_compts(MOM1)[1,2]-get_compts(MOM2)[1,2],[gamma,m]);
T[1,3]:=collect(get_compts(MOM1)[1,2]-get_compts(MOM2)[1,3],[gamma,m]);
T[1,4]:=collect(get_compts(MOM1)[1,2]-get_compts(MOM2)[1,4],[gamma,m]);
T[2,3]:=collect(get_compts(MOM1)[1,2]-get_compts(MOM2)[2,3],[gamma,m]);
T[2,4]:=collect(get_compts(MOM1)[1,2]-get_compts(MOM2)[2,4],[gamma,m]);
T[3,4]:=collect(get_compts(MOM1)[1,2]-get_compts(MOM2)[3,4],[gamma,m]);

(9.3)

>	MOM:=create([-1,-1],array(1..4,1..4,sparse, [[0,T[1,2],T[1,3],T[1,4]],[-T[1,2],0,T[2,3], T[2,4]],[-T[1,3],-T[2,3],0,T[3,4]],[-T[1,4],-T[2,4],-T[3,4],0]])); get_char(MOM); get_rank(MOM);

(9.4)

Contravariant antisymmetric tensor of moment of momentum is:

>	MOM_contr:=raise(g_contr,raise(g_contr, MOM, 1),2); get_char(MOM_contr); get_rank(MOM_contr);

(9.5)

We can rewrite these relations in standart denotes:

>	R4(t):=create([-1],array([c*t,x,y,z])); P4(t):=create([-1],array([En/c,P[2],P[3],P[4]])); MOM1:=prod(R4(t),P4(t)); MOM2:=prod(P4(t),R4(t));

(9.6)

T[1,2]:=collect(get_compts(MOM1)[1,2]-get_compts (MOM2)[1,2],gamma);
T[1,3]:=collect(get_compts(MOM1)[1,2]-get_compts (MOM2)[1,3],gamma);
T[1,4]:=collect(get_compts(MOM1)[1,2]-get_compts (MOM2)[1,4],gamma);
T[2,3]:=collect(get_compts(MOM1)[1,2]-get_compts (MOM2)[2,3],gamma);
T[2,4]:=collect(get_compts(MOM1)[1,2]-get_compts (MOM2)[2,4],gamma);
T[3,4]:=collect(get_compts(MOM1)[1,2]-get_compts (MOM2)[3,4],gamma);

(9.7)

>	MOM_:=create([-1,-1],array(1..4,1..4, sparse ,[[0,T[1,2],T[1,3],T[1,4]],[-T[1,2] ,0,T[2,3], T[2,4]],[-T[1,3],-T[2,3],0, T[3,4]],[-T[1,4],-T[2,4],-T[3,4],0]])); get_char(MOM_): get_rank(MOM_):

(9.8)

>	MOM_contr:=raise(g_contr,raise(g_contr, MOM_, 1),2); get_char(MOM_contr): get_rank(MOM_contr):

(9.9)

References

1. Landau L.D., Lifshits E.V. Theoretical physics. V. 2. Field theory. - Moscow. Fizmatlit. 2003.

2. Tikhonenko A.V. Calculus of tensors and applications in applied mathematical packets. Obninsk. IATE. 2007

Legal Notice: The copyright for this application is owned by the author(s). Neither Maplesoft nor the author are responsible for any errors contained within and are not liable for any damages resulting from the use of this material. This application is intended for non-commercial, non-profit use only. Contact the author for permission if you wish to use this application in for-profit activities.

Maple

Maple Add-Ons

Student Success Platform

Improving Retention Rates

MapleSim

MapleSim Add-Ons

Systems Engineering

Consulting Services

Maple T.A. and Möbius

Education

Industries

Automotive and Aerospace

Robotics

Machine Design & Industrial Automation

Other

Application Areas

Product Pricing

Purchasing

Institutional Student Licensing

Maplesoft Elite Maintenance (EMP)

Support

Product Training

Online Product Help

Webinars & Events

Publications

Content Hubs

Examples & Applications

Community

About Maplesoft

Media Center

User Community

Contact

App Preview:

TENSORS OF RELATIVISTIC ELECTRODYNAMICS WITH MAPLE

Maple

Powerful math software that is easy to use

Maple Add-Ons

Student Success Platform

Improving Retention Rates

MapleSim

Advanced System Level Modeling

MapleSim Add-Ons

Systems Engineering

Consulting Services

Maple T.A. and Möbius

Education

Industries

Automotive and Aerospace

Robotics

Machine Design & Industrial Automation

Other

Application Areas

Product Pricing

Purchasing

Institutional Student Licensing

Maplesoft Elite Maintenance (EMP)

Support

Product Training

Online Product Help

Webinars & Events

Publications

Content Hubs

Examples & Applications

Community

About Maplesoft

Media Center

User Community

Contact

App Preview:

TENSORS OF RELATIVISTIC ELECTRODYNAMICS WITH MAPLE
