The Relaxation function problem of an orthotropic cylinder

Co. H. Tran.
Faculty of Mathematics, University of Natural Sciences - VNU-HCM

  coth123@math.com  &   cohtran@math.com

Copyright  2007

June   06   2007



NOTE:

This worksheet demonstrates Maple's  capabilities in researching  the numerical and graphical solution of the relaxation function problem of  an orthotropic cylinder .

All rights reserved.  Copying or transmitting of this material without the permission of the authors is not allowed .



Abstract

The worksheet presents some thoughts about the plane strain problem of the viscous orthotropic composite materials cylinder under internal and external pressure with

respect to using the direct method . To compute the interior stress , from the elastic solution we use the correspondence principle  and the  inverse Laplace transform .









1. Analysis of  the composite orthotropic cylinder :








We examine an orthotropic viscoelastic composite material cylinder which has the horizontal section within limit of 2 circles : r = a , r = b ( a < b ) .

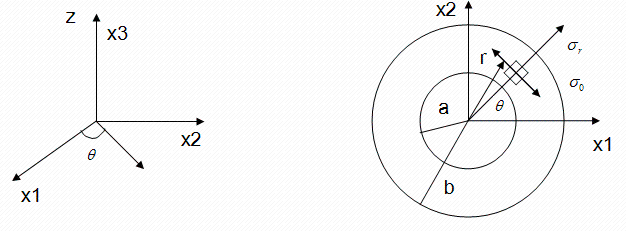

Choosing the cylindrical coordinates r , , z ( the axial z is along with the cylinder ) . The components of stress and deformation  Image

are functions of   r , t   respectively . The two components of deformation-tensor :  Image

and the differential equation of equilibrium :  Image

The boundary conditions :  Image





2. Direct method  :


The direct method is an approximate inversion technic based on  the direct relation between the time  dependence and the transformed solution . If the plot of the viscoelastic solution has small curvature when plotted  with  variables logt  then  :




  (1)

where  Image     C is Euler's constant ..

(1) is exact if    Image    ,     Image   is proportional to  logt  .

(1) can be rewritten  :



                  Image                     (2)

Note that  (2) is used when Image   ,     Image   has small  curvature with respect to logt .

From the correspondence principle   we obtain  the viscoelastic solution .





Image (3)

Image  (4)

Image    (5)

Image  (6)

The  operator moduli :

Image   (7)





We consider the relaxation test  , in which  Image  ,


 is  a constant   at     t  =  0  (8)  .   We  have  Image  ,  Image  ,   Image     (9)

By the similar way , we find  out :  Image(10)

Assume that the relaxation moduli  have power form :  Image   (11)

where  Image   are  constants .

By applying the Laplace transfom for  (11)  ,  we  obtain  the operator moduli :      Image   (12)

with the values of Gamma function :   Image ;     Image      (13)



3. Parameters - The Numerical and Graphical Solution :



> restart;
cycrstrecom:=proc(T,Gamma1,c1,P1,Q1,M1,d1)
global P,Q,sigmaat1,sigmaat2,sigmabt2,sigmabt1,sigmaatisotropic,sigmabtisotropic ;
local To,E,E1,M,d,j,Gamma,Gamma_form,gamma;
with(inttrans):with(plottools):with(plots):
print(" PARAMETERS DEFINITION : ");
print( T=To,gamma=Gamma1,c=c1);
print(" REPRESENTATION OF STRESS : ");
sigma[theta](at):=(gamma*P*(1+c^(2*gamma))-gamma*Q*2*c^(gamma-1))/(1-c^(2*gamma));
print(sigma[theta](a)=sigma[theta](at));
sigma[theta](bt):=(gamma*P*2*c^(gamma+1)-Q*(1+c^(2*gamma)))/(1-c^(2*gamma));
print(sigma[theta](b)=sigma[theta](bt));
P:=P1;Q:=Q1;
To:=T;E[rt]:=(100*(t/To)^(-0.5)+1)*E[e];E[thetat]:=(100*(t/To)^(-0.1)+1)*E[e];
print(E[r]=E[rt]);
print(E[theta]=E[thetat]);
print(" LAPLACE TRANSFORM OF MODULI : ");
E1[rp]:=p*evalf(laplace(E[rt],t,p),3);
print(E1[r]=E1[rp]);
E1[thetap]:=p*evalf(laplace(E[thetat],t,p),3);
print(E1[theta]=E1[thetap]);
Gamma_form:=sqrt(E1[theta]/E1[r]);
print(" EXPRESSION OF  : ",gamma=Gamma_form);
Gamma:=evalf(sqrt(E1[thetap]/E1[rp]),5):
Gamma:=simplify(Gamma);
print(gamma=Gamma);
sigma[theta](a):=(Gamma*P1*(1+c1^(2*Gamma))-Gamma*Q1*2*c1^(Gamma-1))/(1-c1^(2*Gamma));
sigma[theta](b):=(Gamma*P1*2*c1^(Gamma+1)-Q1*(1+c1^(2*Gamma)))/(1-c1^(2*Gamma));
print(sigma[Theta](a)=sigma[theta](a));;print(sigma[Theta](b)=sigma[theta](b));
sigma[theta](at):=(gamma*P*(1+c^(2*gamma))-gamma*Q*2*c^(gamma-1))/(1-c^(2*gamma));
print(" SUBSTITUTE ",c=c1 ,p =1/(2*t),gamma=Gamma);
sigmaat1:=evalf(subs(c=(1/2),p=(1/(2*t)),gamma=Gamma,P=P1,Q=Q1,sigma[theta](a)),3);
sigmaat1:=evalf(simplify(sigmaat1),2);
print(sigma[Theta](a)=sigmaat1);
sigmaat2:=subs(t=10^(s)*To,sigmaat1):
sigmaat2:=evalf(simplify(sigmaat2),2)/P1;
sigmabt1:=evalf(subs(c=(1/2),p=(1/(2*t)),gamma=Gamma,P=P1,Q=Q1,sigma[theta](b)),3);
sigmabt1:=evalf(simplify(sigmabt1),2);
print(sigma[Theta](b)=sigmabt1);
sigmabt2:=subs(t=10^(s)*To,sigmabt1):
sigmabt2:=evalf(simplify(sigmabt2),2);
print(" CHANGE THE PRESENTATION OF TIME INTO  LOG(t/To) ");
print(sigma[Theta](a)=sigmaat2);
print(sigma[Theta](b)=sigmabt2);
sigmaatisotropic:=subs(s=0,sigmaat2);
sigmaatisotropic:=evalf(simplify(sigmaatisotropic),2);
print(sigmaa_isotropic=sigmaatisotropic);
sigmabtisotropic:=subs(s=0,sigmabt2):
sigmabtisotropic:=evalf(simplify(sigmabtisotropic),2);
print("   OUTPUT   DATA  ");
M:=M1;
d:=d1;
printf("    s=log(t/To)         sigma[Theta](a)(s)/P       \n\n");
for j from 0 to M do
printf("%10.1f                %10.4f    \n", -d*(10-j), subs(s=-d*(10-j),sigmaat2));
end do;
for j from 1 to M do
printf("%10.1f                %10.4f    \n", d*j, subs(s=d*j,sigmaat2));
end do;
print(" NUMERICAL AND GRAPHICAL SOLUTION ");
printf("\n%s","   KET THUC BAI TOAN ONG TRU COMPOSITE DAN NHOT TRUC HUONG BANG PHUONG PHAP TRUC TIEP ");
plot([sigmaat2,sigmaat2,sigmaatisotropic],s=-10..30,y=0.85..5.2,color=[grey,black,black],style=[line,point,point],thickness=1,symbol=[cross,diamond,cross],linestyle=1,axes=boxed,labels=["logt/To","sigma(a,t)/P"],legend=[`sigma(a,t)/P`,`sigma(a,t)/P`,`Isotropic solution`],title="Numerical solution");
end:


> cycrstrecom(1, .83, 1/2, 1, 0, 30, 1);


PARAMETERS DEFINITION :

1 = To, gamma = .83, c = 1/2

REPRESENTATION OF STRESS :

sigma[theta](a) = (gamma*P*(1+c^(2*gamma))-2*gamma*Q*c^(gamma-1))/(1-c^(2*gamma))

sigma[theta](b) = (2*gamma*P*c^(gamma+1)-Q*(1+c^(2*gamma)))/(1-c^(2*gamma))

E[r] = (100/t^.5+1)*E[e]

E[theta] = (100/t^.1+1)*E[e]

LAPLACE TRANSFORM OF MODULI :

E1[r] = p*E[e]*(177.*(1/p^1.)^.500+1/p^1.)

E1[theta] = p*E[e]*(107./p^.900+1/p^1.)

EXPRESSION OF :

gamma = ((107.*p^(1/10)+1.)/(177.*(1/p)^(1/2)*p+1.))^(1/2)

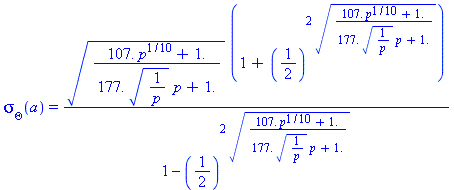

sigma[Theta](a) = ((107.*p^(1/10)+1.)/(177.*(1/p)^(1/2)*p+1.))^(1/2)*(1+(1/2)^(2*((107.*p^(1/10)+1.)/(177.*(1/p)^(1/2)*p+1.))^(1/2)))/(1-(1/2)^(2*((107.*p^(1/10)+1.)/(177.*(1/p)^(1/2)*p+1.))^(1/2)))

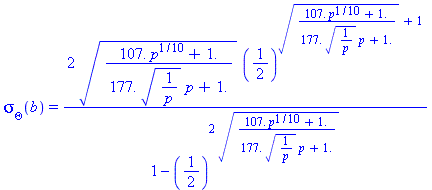

sigma[Theta](b) = 2*((107.*p^(1/10)+1.)/(177.*(1/p)^(1/2)*p+1.))^(1/2)*(1/2)^(((107.*p^(1/10)+1.)/(177.*(1/p)^(1/2)*p+1.))^(1/2)+1)/(1-(1/2)^(2*((107.*p^(1/10)+1.)/(177.*(1/p)^(1/2)*p+1.))^(1/2)))

SUBSTITUTE

sigma[Theta](a) = -1.*(1.+exp(-1.4*(t^(1/2)*(0.10e3*(1/t)^(1/10)+1.)/(0.12e3+t^(1/2)))^(1/2)))*(t^(1/2)*(0.10e3*(1/t)^(1/10)+1.)/(0.12e3+t^(1/2)))^(1/2)/(-1.+exp(-1.4*(t^(1/2)*(0.10e3*(1/t)^(1/10)+1.)...

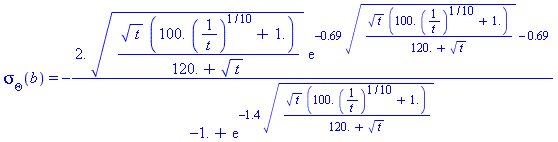

sigma[Theta](b) = -2.*(t^(1/2)*(0.10e3*(1/t)^(1/10)+1.)/(0.12e3+t^(1/2)))^(1/2)*exp(-.69*(t^(1/2)*(0.10e3*(1/t)^(1/10)+1.)/(0.12e3+t^(1/2)))^(1/2)-.69)/(-1.+exp(-1.4*(t^(1/2)*(0.10e3*(1/t)^(1/10)+1.)/...

CHANGE THE PRESENTATION OF TIME INTO LOG(t/To)

sigma[Theta](a) = -1.*(1.+exp(-1.4*((exp(2.3*s))^(1/2)*(0.10e3*(exp(-2.3*s))^(1/10)+1.)/(0.12e3+(exp(2.3*s))^(1/2)))^(1/2)))*((exp(2.3*s))^(1/2)*(0.10e3*(exp(-2.3*s))^(1/10)+1.)/(0.12e3+(exp(2.3*s))^(...

sigma[Theta](b) = -2.*((exp(2.3*s))^(1/2)*(0.10e3*(exp(-2.3*s))^(1/10)+1.)/(0.12e3+(exp(2.3*s))^(1/2)))^(1/2)*exp(-.69*((exp(2.3*s))^(1/2)*(0.10e3*(exp(-2.3*s))^(1/10)+1.)/(0.12e3+(exp(2.3*s))^(1/2)))...

sigmaa_isotropic = 1.6

OUTPUT DATA

   s=log(t/To)         sigma[Theta](a)(s)/P

    -10.0                    1.4286
     -9.0                    1.4286
     -8.0                    1.4287
     -7.0                    1.4289
     -6.0                    1.4294
     -5.0                    1.4305
     -4.0                    1.4335
     -3.0                    1.4409
     -2.0                    1.4595
     -1.0                    1.5056
      0.0                    1.6182
      1.0                    1.8804
      2.0                    2.4264
      3.0                    3.3300
      4.0                    4.3240
      5.0                    4.8725
      6.0                    4.8419
      7.0                    4.5127
      8.0                    4.1110
      9.0                    3.7260
     10.0                    3.3828
     11.0                    3.0857
     12.0                    2.8323
     13.0                    2.6184
     14.0                    2.4396
     15.0                    2.2913
     16.0                    2.1691
     17.0                    2.0691
     18.0                    1.9877
     19.0                    1.9217
     20.0                    1.8684
      1.0                    1.8804
      2.0                    2.4264
      3.0                    3.3300
      4.0                    4.3240
      5.0                    4.8725
      6.0                    4.8419
      7.0                    4.5127
      8.0                    4.1110
      9.0                    3.7260
     10.0                    3.3828
     11.0                    3.0857
     12.0                    2.8323
     13.0                    2.6184
     14.0                    2.4396
     15.0                    2.2913
     16.0                    2.1691
     17.0                    2.0691
     18.0                    1.9877
     19.0                    1.9217
     20.0                    1.8684
     21.0                    1.8255
     22.0                    1.7910
     23.0                    1.7634
     24.0                    1.7413
     25.0                    1.7237
     26.0                    1.7096
     27.0                    1.6984
     28.0                    1.6894
     29.0                    1.6823
     30.0                    1.6766

NUMERICAL AND GRAPHICAL SOLUTION


  KET THUC BAI TOAN ONG TRU COMPOSITE DAN NHOT TRUC HUONG BANG PHUONG PHAP TRUC TIEP

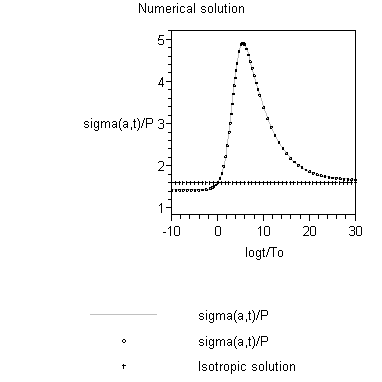

Plot
