Π Theorem for Finding Dimensionless Groups for a Physical System

Lee R. Partin

lpartin@chartertn.net

The theorem provides information about the relationship of physical parameters within a physical system.

Suppose you have a physical system that is determined by five parameters such that . The Theorem determines the number of dimensionless groups composed of the five parameters that are required to restate the equation. Suppose that three groups are required. The new equation is .

Thomas Szirtes provided detailed procedures to determine the groups in his book "Applied Dimensional Analysis and Modeling," McGraw-Hill, (1998), ISBN 0-07-062811-4. See chapters 7 and 8 for the methodology. The procedures were programmed in Maple using its Units module. The textbook has numerous examples for applying the Π Theorem. The book is very good at explaining the application of the Π theorem to physical systems.

Restart

Restart Maple to initialize the work space.

>	restart;

Module Programming

The Units module provides the needed capability to handle the Pi theorem methodology. A module called GeneratePiTheorem applies Units in its programming of the Pi methodology.

Initialization

Initializing the Units module:

>	with(Units);

(2.1.1)

Module

The Pi theorem method is programmed in a module that is created within a routine. The k

GeneratePiTheorem:=proc(f::`name`) description "generate a module for doing the calcs";
f:=module()
description "application module for Pi theorem definition of dimensionless numbers";
local NumberAcceptedFundamentals, NumberAcceptedParams, NumberUnitlessParams;
export ParamNames, ParamTypes, Initialize, degrees, Check, fundamentals, MatrixUnit,
        MatrixFundamentals, MatrixParams, UnitlessParams, FindPiGroups, Groups,
        GroupsDef, GroupsLabel, PrintPiGroups, ExcludedFundamentals, Exclude;
ParamNames:=table();
ParamTypes:=table();
MatrixFundamentals:=table();
MatrixParams:=table();
UnitlessParams:=table();
ExcludedFundamentals:=[];
Groups:=0;
NumberAcceptedFundamentals:=0;
NumberAcceptedParams:=0;
NumberUnitlessParams:=0;
Initialize:=proc() description "initialize data for the Pi therorm";
   local inputs, i, j;
   if nargs<>1 then error "one input is required; it is a set of physical parameters" fi;
   if type(args[1],`list`)=false then error "input a list of physical parameters" fi;
   inputs:=convert(args[1],`list`);
   ParamNames:=[seq(convert(lhs(inputs[i]),`string`),i=1..nops(inputs))];
   ParamTypes:=[seq(rhs(inputs[i]),i=1..nops(inputs))];
   fundamentals:=[Units:-GetDimensions(base)];
   degrees:=array(1..nops(fundamentals),1..nops(ParamTypes));
   for i from 1 to nops(fundamentals) do
     for j from 1 to nops(ParamTypes) do
        if ParamTypes[j]<>1 then
          degrees[i,j]:=degree(Units:-GetDimension(ParamTypes[j]),fundamentals[i])
        else
          degrees[i,j]:=0;
        fi;
     end do;
   end do;
   j:=0;
   for i from 1 to nops(ParamTypes) do
     if ParamTypes[i]=1 then
        j:=j+1;
        UnitlessParams[j]:=ParamNames[i];
     fi;
   end do;
   NumberUnitlessParams:=j;
   if j>0 then UnitlessParams:=convert(UnitlessParams,`list`) fi;
   RETURN();
end proc:
Exclude:=proc(ExcludeList::`list`)
   description "enter list of fundamentals to exclude from analysis";
   ExcludedFundamentals:=ExcludeList;
end proc:
Check:=proc() description "check the parameter specifications" ;
   local i, j, rowCounts, errorCode, columnCounts, acceptedParams, acceptedFundamentals,
         k;
   errorCode:=0;
   for i from 1 to nops(fundamentals) do
     rowCounts[i]:=0;
     for j from 1 to nops(ParamTypes) do
       if degrees[i,j]<>0 then rowCounts[i]:=rowCounts[i]+1 fi
     end do;
   end do;
   for j from 1 to nops(ParamTypes) do
     columnCounts[j]:=0;
     for i from 1 to nops(fundamentals) do
       if degrees[i,j]<>0 then columnCounts[j]:=columnCounts[j]+1 fi
     end do;
   end do;
   # check for a fundamentals row with only one entry
   for i from 1 to nops(fundamentals) do
     if rowCounts[i]=1 then
       printf("Fundamental unit ( %s ) has only one entry within the groups. You must drop the parameter containing it or add another physical parameter with that fundamental unit.", fundamentals[i]);
       error "there is a row with only one entry for the fundamental unit";
     fi;
   end do;
   # accept the physical parameters that contain fundamental units
   j:=0;
   #printf("accepted parameters: \n");
   for i from 1 to nops(ParamTypes) do
     if columnCounts[i]>0 then
        j:=j+1;
        acceptedParams[j]:=i;
        MatrixParams[j]:=ParamNames[i];
   #     printf(" %s \n",ParamNames[i]);
     fi;
   end do;
   MatrixParams:=convert(MatrixParams,`list`);
   #printf(" %s \n",ParamNames[1]);
   NumberAcceptedParams:=j;
   k:=0;
   #printf("accepted fundamental units: \n");
   for i from 1 to nops(fundamentals) do
     if rowCounts[i]>1 and not member(fundamentals[i],ExcludedFundamentals) then
       k:=k+1;
       acceptedFundamentals[k]:=i;
       MatrixFundamentals[k]:=fundamentals[i];
   #    printf(" %s \n",fundamentals[i]);
     fi;
   end do;
   MatrixFundamentals:=convert(MatrixFundamentals,`list`);
   NumberAcceptedFundamentals:=k;
   MatrixUnit:=array(1..NumberAcceptedFundamentals,1..NumberAcceptedParams);
   for i from 1 to NumberAcceptedFundamentals do
     for j from 1 to NumberAcceptedParams do
       MatrixUnit[i,j]:=degrees[acceptedFundamentals[i],acceptedParams[j]]
     end do;
   end do;
   if NumberUnitlessParams>0 then
     RETURN(UnitMatrix=eval(MatrixUnit),Fundamentals=MatrixFundamentals,
            Parameters=MatrixParams, UnitlessParameters=UnitlessParams)
   else
     RETURN(UnitMatrix=eval(MatrixUnit),Fundamentals=MatrixFundamentals,
            Parameters=MatrixParams, UnitlessParameters=0)
   fi;
end proc:
FindPiGroups:=proc() description "find the dimensionless groups (Pi groups)";
   local i, j, k, A, B, C, det, Delta;
   A:=Matrix(NumberAcceptedFundamentals);
   for i from 1 to NumberAcceptedFundamentals do
     for j from 1 to NumberAcceptedFundamentals do
       k:=j + NumberAcceptedParams - NumberAcceptedFundamentals;
       A[i,j]:=MatrixUnit[i,k];
     end do;
   end do;
   Delta:=NumberAcceptedFundamentals - linalg[rank](MatrixUnit);
   if Delta>0 then
      error "There are too many accepted fundamental units: ", eval(MatrixFundamentals), ". Use Exclude to remove ", Delta, " of them prior to the Initialize statement.";
   fi;
   det:=LinearAlgebra[Determinant](A);
   if det=0 then error "The determinant of the right square A matrix of UnitMatrix is zero. Shift the order of the physical paramters in Initialize to get a non-zero determinant." fi;
   B:=Matrix(NumberAcceptedFundamentals,
             NumberAcceptedParams-NumberAcceptedFundamentals);
   for i from 1 to NumberAcceptedFundamentals do
     for j from 1 to NumberAcceptedParams-NumberAcceptedFundamentals do
       B[i,j]:=MatrixUnit[i,j]
     end do;
   end do;
   C:=-LinearAlgebra[Transpose](
       LinearAlgebra[MatrixMatrixMultiply](LinearAlgebra[MatrixInverse](A),B));
   Groups:=NumberAcceptedParams-linalg[rank](MatrixUnit)+NumberUnitlessParams;
   GroupsDef:=Matrix(Groups,NumberAcceptedParams+NumberUnitlessParams,0);
   for i from 1 to NumberAcceptedParams do
     GroupsLabel[i]:=MatrixParams[i]
   end do;
   if NumberUnitlessParams>0 then
     for i from 1 to NumberUnitlessParams do
       GroupsLabel[i+NumberAcceptedParams]:=UnitlessParams[i]
     end do;
   fi;
   GroupsLabel:=convert(GroupsLabel,'list');
   if NumberUnitlessParams>0 then
      for i from 1 to NumberUnitlessParams do
        GroupsDef[i,NumberAcceptedParams+i]:=1
      end do;
   fi;
   for i from 1 to (Groups-NumberUnitlessParams) do
     GroupsDef[i+NumberUnitlessParams,i]:=1;
     for j from 1 to (NumberAcceptedParams-Groups+NumberUnitlessParams) do
       GroupsDef[i+NumberUnitlessParams,Groups-NumberUnitlessParams+j]:=
             C[i,j]
     end do;
   end do;
   RETURN(labels=GroupsLabel,PiCoeffs=GroupsDef);
end proc:
PrintPiGroups:=proc() description "print the Pi groups in math form";
   local i, j, GroupValues, ParamNames;
   GroupValues:=table();
   ParamNames:=table();
   if Groups=0 then error "no Pi groups are defined" fi;
   for i from 1 to nops(GroupsLabel) do
     ParamNames[i]:=convert(GroupsLabel[i],`name`)
   end do;
   i:='i';
   for i from 1 to Groups do
     j:='j';
     GroupValues[i]:=1;
     for j from 1 to nops(GroupsLabel) do
       GroupValues[i]:=GroupValues[i]*ParamNames[j]^GroupsDef[i,j]
     end do;
   end do;
   RETURN([seq(PI[i]=GroupValues[i],i=1..Groups)]);
end proc:
end module:
end proc:
module StorePiGroups()
description "save Pi groups definitions across multiple searches";
local i, NoGroups, NoParams;
export PiCoeffs, StoreCoefficients, EnterParameters, PiGroupSummary,
        Initialize, Labels, FindIndependentGroups;
PiCoeffs:=table();
Labels:=[];
NoGroups:=0;
NoParams:=0;
Initialize:=proc()
   description "initialize the storage values to null";
   PiCoeffs:=table();
   Labels:=[];
   NoGroups:=0;
   NoParams:=0;
   RETURN("Initialized");
end proc;
EnterParameters:=proc(label::`list`)
   description "enter the parameter labels for columns in Pi number storage";
   local i;
   Labels:=label;
   NoParams:=nops(label);
   RETURN(label);
end proc;
StoreCoefficients:=proc(label::`list`,coef::`Matrix`)
   description "save Pi coefficients into master list";
   local i, j, k, NoEntries;
   if not nops(label)=NoParams then error "wrong number of entries in first argument" fi;
   NoEntries:=op(1,coef)[1];
   if not NoEntries>0 then error "bad matrix of coefficients" fi;
   for i from 1 to nops(label) do
     member(label[i],Labels,'k');
     for j from 1 to NoEntries do
       PiCoeffs[NoGroups+j,k]:=coef[j,i]
     end do;
   end do;
   NoGroups:=NoGroups+NoEntries;
   RETURN(PiCoeffs);
end proc;
PiGroupSummary:=proc()
   description "return the stored information on Pi groups";
   local i, j, GroupMatrix, GroupSet, Item, GroupPrint, ParamNames;
   ParamNames:=table();
   GroupSet:={};
   GroupPrint:=table();
   for i from 1 to NoGroups do
     GroupSet:=GroupSet union {[seq(PiCoeffs[i,j],j=1..NoParams)]}
   end do;
   i:=0; j:='j';
   GroupMatrix:=matrix(nops(GroupSet),NoParams);
   for Item in GroupSet do
     i:=i+1;
     for j from 1 to NoParams do
       GroupMatrix[i,j]:=Item[j]
     end do;
   end do;
   i:='i';
   for i from 1 to nops(Labels) do
     ParamNames[i]:=convert(Labels[i],`name`)
   end do;
   i:='i';
   for i from 1 to nops(GroupSet) do
     j:='j';
     GroupPrint[i]:=1;
     for j from 1 to nops(Labels) do
       GroupPrint[i]:=GroupPrint[i]*ParamNames[j]^GroupMatrix[i,j]
     end do;
   end do;
   i:='i';
   RETURN('ParamNames'=Labels,'GroupsDefs'=eval(GroupMatrix),
          'PiGroups'=[seq(PI[i]=GroupPrint[i],i=1..nops(GroupSet))]);
end proc;
FindIndependentGroups:=proc(SelectedGroups::Matrix)
   description "find all groups that are independent in regards to selected groups";
   local i, j, GroupMatrix, GroupSet, Item, GroupPrint, ParamNames,
         IndependentGroups, TestMatrix, IndSet;
   ParamNames:=table();
   GroupSet:={};
   GroupPrint:=table();
   for i from 1 to NoGroups do
     GroupSet:=GroupSet union {[seq(PiCoeffs[i,j],j=1..NoParams)]}
   end do;
   i:=0; j:='j';
   GroupMatrix:=Matrix(nops(GroupSet),NoParams);
   for Item in GroupSet do
     i:=i+1;
     for j from 1 to NoParams do
       GroupMatrix[i,j]:=Item[j]
     end do;
   end do;
   i:='i';
   for i from 1 to nops(Labels) do
     ParamNames[i]:=convert(Labels[i],`name`)
   end do;
   i:='i';
   for i from 1 to nops(GroupSet) do
     j:='j';
     GroupPrint[i]:=1;
     for j from 1 to nops(Labels) do
       GroupPrint[i]:=GroupPrint[i]*ParamNames[j]^GroupMatrix[i,j]
     end do;
   end do;
   # try one row from GroupMatrix at a time for linear independence
   i:='i';j:='j';
   IndSet:={};
   TestMatrix:=Matrix(LinearAlgebra[RowDimension](SelectedGroups)+1,
                      LinearAlgebra[ColumnDimension](SelectedGroups));
   for i from 1 to LinearAlgebra[RowDimension](SelectedGroups) do
     for j from 1 to LinearAlgebra[ColumnDimension](SelectedGroups) do
       TestMatrix[i,j]:=SelectedGroups[i,j]
     end do;
   end do;
   i:='i';
   for i from 1 to nops(GroupSet) do
     j:='j';
     for j from 1 to LinearAlgebra[ColumnDimension](SelectedGroups) do
       TestMatrix[LinearAlgebra[RowDimension](SelectedGroups)+1,j]:=
           GroupMatrix[i,j]
     end do;
     if LinearAlgebra[Rank](TestMatrix)=
        (LinearAlgebra[RowDimension](SelectedGroups)+1) then
        IndSet:=IndSet union {i} fi;
   end do;
   RETURN(IndSet,'PiGroups'=[seq(PI[IndSet[i]]=
          GroupPrint[IndSet[i]],i=1..nops(IndSet))]);
end proc:
end module:

Application of Pi Theorem

To use the PiTheorem module, you must first define Maple variables as the physical parameters of a physical system. Maple knows the dimensions for numerous physical parameters. Here are its known physical dimensions.

>	GetDimensions();

(3.1)

The AddDimension command lets you add new dimensions to the system. For example, basis weight in paper manufacture is defined as the grams per square meter of surface area. It is defined to the system in terms of previously defined dimensions as follows using AddDimension:

>	AddDimension(basis_weight=mass/length^2);

Overview:

Define the physical parameter variables with their unit types.

Create a module instance for performing the analysis via a call to GeneratePiTheorem. It creates the module with the desired name such as Case: GeneratePiTheorem(Case):

Case:-Exclude is available for very special cases when one or more fundamental units must be dropped from the analysis. The software will advise when it is necessary to use exclude.

Initialize Case with its parameters: Case:-Initialize(........)

Check for valid data: Case:-Check()

Find the Π groups: Case:-FindPiGroups

Print the Π groups: Case:-PrintPiGroups

Several examples are provided to show its usage.

Traditional Pendulum Example

The period of a pendulum is related to the pendulum length, the acceleration of gravity and the release angle. First, enter the physical parameter variables:

>	t:=time: # period (time for a complete cycle in movement) l:=length: # length of the pendulum arm g:=acceleration: # acceleration of gravity theta:=1: # release angle: it is unitless for this case

Create a PiTheorem module instance called Case1 for this example.

>	GeneratePiTheorem(Case1):

Initialize the module instance with the physical parameter data as follows. Note that parameter t is placed first in the list since it is the main variable of concern. The method will create groups with t found only in The variable names are entered to the initialization as a 'name'=name. 'name' delays the evaluation so that the actual name gets passed to the routine.

>	Case1:-Initialize(['t'=t,'l'=l,'g'=g,'theta'=theta]);

Perform the initial calculations and check for valid solutions,

>	Case1:-Check();

(3.1.1)

Find the Π groups,

>	Case1:-FindPiGroups();

(3.1.2)

Print the Π groups from the rows of :

>	Case1:-PrintPiGroups();

(3.1.3)

Then, the resulting mathematical relationship for the pendulum is in the form of Therefore, .

What if you attempted to add the mass of the pendulum as a physical parameter to the model?

>	m:=mass; # new variable m for the pendulum mass GeneratePiTheorem(Case1a): # new module instance Case1a:-Initialize(['t'=t,'l'=l,'g'=g,'theta'=theta,'m'=m]); Case1a:-Check();


Fundamental unit ( mass ) has only one entry within the groups. You must drop the parameter containing it or add another physical parameter with that fundamental unit.

Error, (in Check) there is a row with only one entry for the fundamental unit

The check step now fails. One of the rules for the Pi Theorem is that each fundamental unit within the proposed physical parameters must occur in at least two physical parameters. Otherwise, it is not possible to form a dimensionless group with the physical parameter. If the pendulum mass is actually required to model the physical system, then there must be another physical parameter added that includes mass in its dimensions.

Terminal Raindrop Velocity

Falling raindrops reach a maximum velocity as they fail to earth. It is proposed that the terminal velocity is related to the radius of the raindrop, the density of the air, the viscosity of the air and the earth's acceleration of gravity. The Pi Theorem is applied as follows:

>	v:=speed: # terminal raindrop velocity rho:=mass_density: # air density r:=length: # radius of raindrop mu:=dynamic_viscosity: # air viscosity g:=acceleration: # earth's gravity

Create a PiTheorem module instance for this example,

>	GeneratePiTheorem(Case2):

Initialize the module instance with the physical parameter data as follows. Note that parameter v is placed first in the list since it is the main variable of concern.

>	Case2:-Initialize(['v'=v,'rho'=rho,'r'=r,'mu'=mu,'g'=g]);

Perform the initial calculations and check for valid solutions,

>	Case2:-Check();

(3.2.1)

>	Case2:-FindPiGroups();

(3.2.2)

Print the Π groups,

>	Case2:-PrintPiGroups();

(3.2.3)

Note that there are two groups and that the first two physical parameters in the entry list were selected to be in only one of the two groups and to be raised to the first power. By placing the terminal velocity as the first physical parameter entry, it gets to be only within the first group. That is a good feature for our model of terminal raindrop velocity to have.

You may change the second physical parameter in the list and get another set of Pi groups:

>	GeneratePiTheorem(Case2a):

>	Case2a:-Initialize(['v'=v,'r'=r,'rho'=rho,'mu'=mu,'g'=g]);

>	Case2a:-Check();

(3.2.4)

>	Case2a:-FindPiGroups();

(3.2.5)

The new Π groups are:

>	Case2a:-PrintPiGroups();

(3.2.6)

The analysis does not work for all cases. If ρ and μ were entered first and second in the Initialize list, then the analysis tries to find a solution where has ρ to the first power without μ present and has μ to the first power without ρ present. It is not feasible. The module responds with an error and recommends changing the order of the physical parameters.

>	GeneratePiTheorem(Case2b): Case2b:-Initialize(['rho'=rho,'mu'=mu,'v'=v,'r'=r,'g'=g]); Case2b:-Check(); Case2b:-FindPiGroups();


Error, (in FindPiGroups) The determinant of the right square A matrix of UnitMatrix is zero. Shift the order of the physical paramters in Initialize to get a non-zero determinant.

Heat Transfer in a Pipe

The rate of heat transfer of a fluid in a pipe is given by

Heat Flow = heat transfer coefficient * area * temperature difference between the fluid and the pipe wall

The heat transfer coefficient is related to six other parameters. The parameter list is:

h:=heat_transfer_coefficient: # heat transfer coefficient
rho:=mass_density: # density of the fluid in the pipe
Cp:=specific_heat_capacity: # fluid heat capacity
k:=thermal_conductivity: # fluid thermal conductivity
mu:=dynamic_viscosity: # fluid viscosity
v:=speed: # fluid velocity
Dia:=length: # pipe inside diamter

>	GeneratePiTheorem(Case3): # new module instance Case3:-Initialize(['h'=h,'rho'=rho,'Cp'=Cp,'k'=k,'mu'=mu,'v'=v,'Dia'=Dia]); Case3:-Check();

Typesetting:-mrow(Typesetting:-mverbatim(

(3.3.1)

>	Case3:-FindPiGroups();

(3.3.2)

The resulting Π groups are:

>	Case3:-PrintPiGroups();

(3.3.3)

The groups are known as the Nusselt number, Reynolds number and Prandtl number.

Find All Pi Groups Feasible for Heat Transfer in a Pipe

The seven physical parameters for heat transfer in a pipe are:

The heat transfer coefficient is kept as the first parameter and the other six parameters are tested in all permutations in order to find all of the feasible groups from the solution technique.

i:=0:
# enter the other parameters (not the prime parameter h) in the following special form
Params:=['''rho'=rho'','''Cp'=Cp'','''k'=k'',
        '''mu'=mu'','''v'=v'','''Dia'=Dia'']:
StorePiGroups:-Initialize():   # use it to store all of the returned Pi groups
# enter the prime parameter h as follows:
StorePiGroups:-EnterParameters(["h",seq(convert(rhs(Params[j]),
                              `string`),j=1..nops(Params))]):
for Item in combinat[choose](Params,3) do
Params2:=[]:
for j from 1 to nops(Params) do
   if not member(eval(Params[j]),Item) then Params2:=[op(Params2),j] fi
end do;
j:='j';
for j from 1 to nops(Params) do
   if member(eval(Params[j]),Item) then Params2:=[op(Params2),j] fi
end do;
Params3:=[''h'=h',seq(eval(Params[Params2[k]],1),k=1..nops(Params2))]:
i:=i+1:
try
   GeneratePiTheorem(Case2_||i):   # new module instance
   Case2_||i:-Initialize(Params3):
   Case2_||i:-Check():
   val:=Case2_||i:-FindPiGroups():
   StorePiGroups:-StoreCoefficients(rhs(val[1]),rhs(val[2])):
   catch:
end try;
end do:

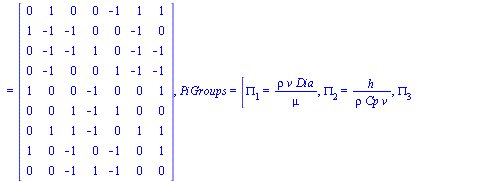

>	GroupData:=StorePiGroups:-PiGroupSummary();

(3.4.1)

, and correspond to the groups found in the previous section. There are six more Π groups that are feasible. The Π theorem requires that the three selected Π groups are independent.

Suppose that you select the and groups. Which of the remaining seven Pi groups are independent of these two Pi groups. The module provides a routine to find them.

GroupDefs:=convert(rhs(GroupData[2]),Matrix):
# enter the two selected group numbers
# **** Review the results from (3.4.1) to find the two desired groups.
# **** The numbers change between different executions of the commands.
SelectedGroups:=[1,5]:
i:='i': DeleteList:=[]:
for i from 1 to LinearAlgebra[RowDimension](GroupDefs) do
if not member(i,SelectedGroups) then
DeleteList:=[i,op(DeleteList)] fi
end do;
GroupDefs:=LinearAlgebra[DeleteRow](GroupDefs,DeleteList):
IndGroups:=StorePiGroups:-FindIndependentGroups(GroupDefs);

(3.4.2)

6 groups are independent from the two selected groups.

Now try again with a selection of Pi groups and .

GroupDefs:=convert(rhs(GroupData[2]),Matrix):
# enter the two selected group numbers
# **** Review the results from (3.4.1) to find the two desired groups.
# **** The numbers change between different executions of the commands.
SelectedGroups:=[1,6]:
i:='i': DeleteList:=[]:
for i from 1 to LinearAlgebra[RowDimension](GroupDefs) do
if not member(i,SelectedGroups) then
DeleteList:=[i,op(DeleteList)] fi
end do;
GroupDefs:=LinearAlgebra[DeleteRow](GroupDefs,DeleteList):
IndGroups:=StorePiGroups:-FindIndependentGroups(GroupDefs);

(3.4.3)

The three groups that contain the heat transfer coefficient are then feasible as independent groups to match with and as the final group.

Coffee Warmer

Reference: Dr. Thomas Szirtes, "Applied Dimensional Analysis and Modeling," McGraw-Hill, (1998), ISBN 0-07-062811-4, pp. 356-358.

A cup of coffee is being heated on a hot plate as follows:

heat, is added from the hot plate to the coffee through the bottom flat surface of the mug

heat, is lost from the coffee to the side wall of the mug

the mug has a lid that is assumed to perfectly insulate the top of the mug

the heat transfer from the mug wall is influenced by the heat transfer coefficient, the area and the temperature difference between the coffee and room air

The physical system is proposed to be given by five quantities:

>	Delta_t:=thermodynamic_temperature: # delta temp between coffee and air h:=heat_transfer_coefficient: # heat transfer coef from cup to air AddDimension(heat_flux=energy/time): Q:=heat_flux: # heat flux to coffee from hot plate b:=length: # height of coffee in mug Dia:=length: # diameter of mug

>	GeneratePiTheorem(Case4): # new module instance #Case4:-Exclude([time]): Case4:-Initialize(['Delta_t'=Delta_t,'b'=b,'Q'=Q,'h'=h,'Dia'=Dia]); Case4:-Check();

(3.5.1)

>	Case4:-FindPiGroups();

Error, (in FindPiGroups) There are too many accepted fundamental units: , [length, mass, thermodynamic_temperature, time], . Use Exclude to remove , 1, of them prior to the Initialize statement.

>	# Repeating the calculations excluding time dimension from the analysis, GeneratePiTheorem(Case4): # new module instance Case4:-Exclude([time]): Case4:-Initialize(['Delta_t'=Delta_t,'b'=b,'Q'=Q,'h'=h,'Dia'=Dia]); Case4:-Check();

(3.5.2)

>	Case4:-FindPiGroups();

(3.5.3)

>	Case4:-PrintPiGroups();

(3.5.4)

Legal Notice: The copyright for this application is owned by the author. Neither Maplesoft nor the author are responsible for any errors contained within and are not liable for any damages resulting from the use of this material. This application is intended for non-commercial, non-profit use only. Contact the author for permission if you wish to use this application in for-profit activities.

Maple

Maple Add-Ons

Math Success Platform

Improving Retention Rates

Maple Flow

MapleSim

Consulting Services

Maple T.A. and Möbius

Education

Industries

Automotive and Aerospace

Robotics

Machine Design & Industrial Automation

Other

Application Areas

Product Pricing

Purchasing

Institutional Student Licensing

Maplesoft Elite Maintenance (EMP)

Support

Product Training

Online Product Help

Webinars & Events

Publications

Content Hubs

Examples & Applications

Community

About Maplesoft

Media Center

User Community

Contact

App Preview:

Pi Theorem Application

Maple

Powerful math software that is easy to use

Maple Add-Ons

Math Success Platform

Improving Retention Rates

Maple Flow

Engineering calculations & documentation

MapleSim

Advanced System Level Modeling

Consulting Services

Maple T.A. and Möbius

Education

Industries

Automotive and Aerospace

Robotics

Machine Design & Industrial Automation

Other

Application Areas

Product Pricing

Purchasing

Institutional Student Licensing

Maplesoft Elite Maintenance (EMP)

Support

Product Training

Online Product Help

Webinars & Events

Publications

Content Hubs

Examples & Applications

Community

About Maplesoft

Media Center

User Community

Contact

App Preview:

Pi Theorem Application
