The Read-Bajraktarevic Functional Equation and Selfsimilarity
Wieslaw Kotarski  (kotarski@ux2.math.us.edu.pl) & Agnieszka Lisowska (alisow@ux2.math.us.edu.pl)
Institute of Computer Science
Silesian University
Bedzinska 3941-200 Sosnowiec, Poland

(Abstract)
The aim of this worksheet is to show to Maple users, following [8], [10], that fractal curves may be obtained as solutions to some functional equations with the so-called Read-Bajraktarevic operator. Additionally, it will be demonstrated the power of Maple to handle with the problem that needs to its solving a symbolic approach.

1. Introduction

Fractals have been discovered by Mandelbrott in 1970s [1], [9]. They are objects having very complicated geometrical shapes impossible to describe with the help of classical Euclidean geometry. Fractals are selfsimilar objects. It means that parts of them are similar to the whole objects. One can generate fractals iteratively using  very simple set of rules defined by the so-called IFS (Iterated Function System). More information about fractals can be found eg. in classical books [1], [9]. Below, following [8], [10], we present an approach for rendering  fractal curves that are selfsimilar solutions to some functional equation. That functional equation has been investigated in 1950s independently by two mathematicians and, to honour  them, is named  as the Read-Bajraktarevic equation.
The Read-Bajraktarevic equation has the following form:

where  are functions and is a closed interval in . We are looking for a function satisfying (1) with given functions and  .
Following [8], [10] we recall the theorem:
Theorem
Let I  be a closed interval in R. Assume that Further, assume that there exists a constant r, 0 < r < 1 such that for every x in I, is satisfied:

Then the operator Φ:
The operator  Φ is the so-called Read Bajraktarevic operator. From the well-known Hahn Banach Fixed Point Theorem it follows that there exists a unique fixed point (x) - the solution to the equation (1), that may be obtained as a limit of the following iterations:

starting from any function  (x).
The sequence of iterations (2) is convergent to (x) in the following sense:

In the next section examples of Read-Bajraktarevic equations will be presented together with their solutions. Observe that in considered examples all assumptions about functions v and b are satisfied.

2. Maple Program









Procedure for approximately solving the Read-Bajraktarevic equation (n is a number of iterations)







Procedure for plotting approximate solution to the Read-Bajraktarevic equation (n is a number of iterations)









3. Examples



Let us consider the following examples:



Example 3.1

Given functions:





(3.1.1)









(3.1.2)



Initial function





(3.1.3)



Iterations

Analytic Form





(3.1.1.1)

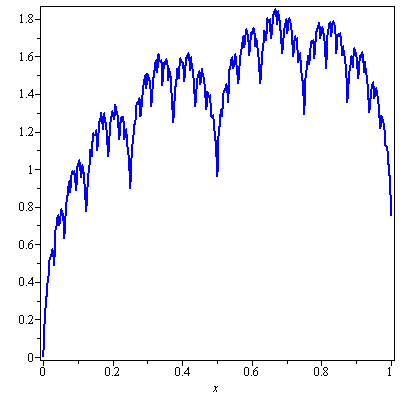

Graphical Form













Animation











Example 3.2



Take functions  b and v the same as in Example 3.1. But the starting function is now different.



Initial function





(3.2.1)



Iterations

Analytic Form





(3.2.1.1)





Graphical Form















Animation















Remark

We can see that both cases (Example 3.1 and 3.2) the limit function is the same independently on the initial function.



Example 3.3



Given functions





(3.3.1)





(3.3.2)









(3.3.3)





Initial function





(3.3.4)





Iterations

Analytic Form





(3.3.1.1)





Graphical Form









Animation











Example 3.4



Given function





(3.4.1)













(3.4.2)







(3.4.3)





Iterations

Analytic Form





(3.4.1.1)





Graphical Form









Animation













4. Remarks



In this worksheet we presented approximations of solutions to the Read-Bajraktarevic equation. It is easily seen that solutions to the Read-Bajraktarevic equation are fractal like functions. Applying more general theorem to theorem 1 (see: [8], [10]) it is possible to prove that quadratic curve is the solution to some Read-Bajraktarevic equation with functions:

Directly one can check that the function satisfies the following identity

Observe, that there also exists  the second solution That is because the function does not map the interval [0,1] onto [0,1]. Summing up, any quadratic curve is selfsimilar. That means that quadratic curve can be generated in a fractal way. The same result can be obtained applying subdivision arguments presented by Goldman in [2], who gave the form of IFS for rendering of any B?zier curve. The authors applied Goldman's result and its generalizations to any subdivision to generate fractally many shapes presented in their earlier Maple worksheets [3]-[6]. It should be mentioned that the first author described a method of fractal modeling of shapes in [7].
