Bass Drum Pedal

This model converts a translational force applied by the foot to a rotational motion of the beater through three spring-loaded linkages, which in turn applies a translational impulse force to the drum head, which is modeled using an elasto-backlash component.

The relationship between the foot motion and the beater is highly non-linear and fine-tuning the relationship makes the difference between a good and bad "feel" for the drummer. Having access to a high-fidelity model can bring a great deal of insight into the design and allow a more rigorous approach to optimizing its responsiveness.


Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today

If you have MapleSim, download the model here:

Download the Model Request an S-function


Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.

Model: Bass Drum Pedal

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images

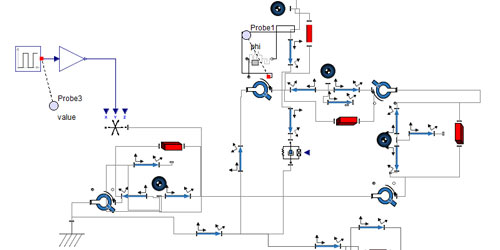

  • model Model diagram of the pedal and drum
