Contact Models

This model contains four variations in the implementation of a sticky vertical contact between the ball and the ground plane. In all four implementations, there is no force effect defined along the horizontal (x) direction. The expected result of this simulation is that the ball will hit the ground, get stuck to the horizontal plane and slide along the (frictionless) surface. Two of these implementations are created with built-in 1-D mechanical components in MapleSim attached to the vertical axis: the Translational HardStop and Elasto Gap Component. Both have high damping coefficient to emulate the “sticking” effect. The other two implementations are constructed through either graphical construction (signal flow diagram) or a custom component to realize the contact force equation:


Which basically says when the ball is in contact with (or below) the ground (s(t)<=0), apply a pushing force back that is proportional to the ground penetration (spring effect) and speed (v(t)) of the ball (damping/sticky effect).

Close

Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today


If you have MapleSim, download the model here:

Download the Model Request an S-function

Close

Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.


Model: Contact Models
Industry:

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images

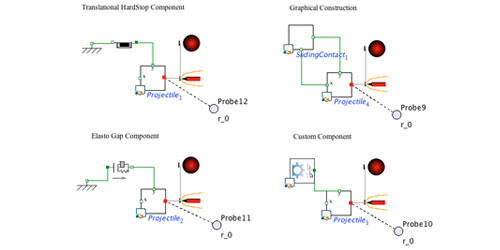

  • model image The model schematic of the system
