3 Degrees of Freedom Helicopter with PID

The model was based on a 3 DOF helicopter from Quanser. Two DC motors are mounted at the two ends of a rectangular frame and drive two propellers. The motors axes are parallel and the thrust vector is normal to the frame. The helicopter frame is suspended from an instrumented joint mounted at the end of a long arm and is free to pitch about its center. The arm is gimbaled on a 2 DOF instrumented joint and is free to pitch and yaw. The other end of the arm carries a counterweight such that the effective mass of the helicopter is light enough for it to be lifted using the thrust from the motors. A positive voltage applied to the front motor causes a positive pitch while a positive voltage applied to the back motor causes a negative pitch. A positive voltage to either motor also causes an elevation of the body (pitch of the arm). If the body pitches, the thrust vectors result in a travel of the body (yaw of the arm) as well. The vertical base is equipped with an eight-contact slipring. Electrical signals to and from the arm and helicopter are channeled through the slipring to eliminate tangled wires, reduce friction and allow for unlimited and unhindered travel.

This model includes a Maple worksheet for analysis.

Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today

If you have MapleSim, download the model here:

Download the Model Request an S-function


Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.

Model: 3 Degrees of Freedom Helicopter with PID

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images

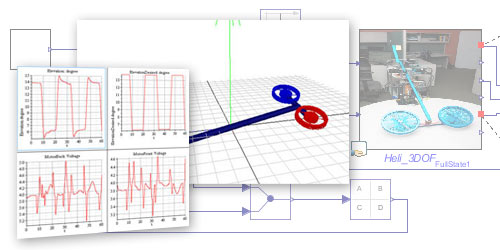

  • 3DegreeesFreedomHelicopterPID MapleSim model simulates physical hardware behavior for a controlled helicopter.
  • model Model view of 3DOF helicopter with control system
  • subsystem Subsystem view of the body assembly
