Four-Bar Mechanism

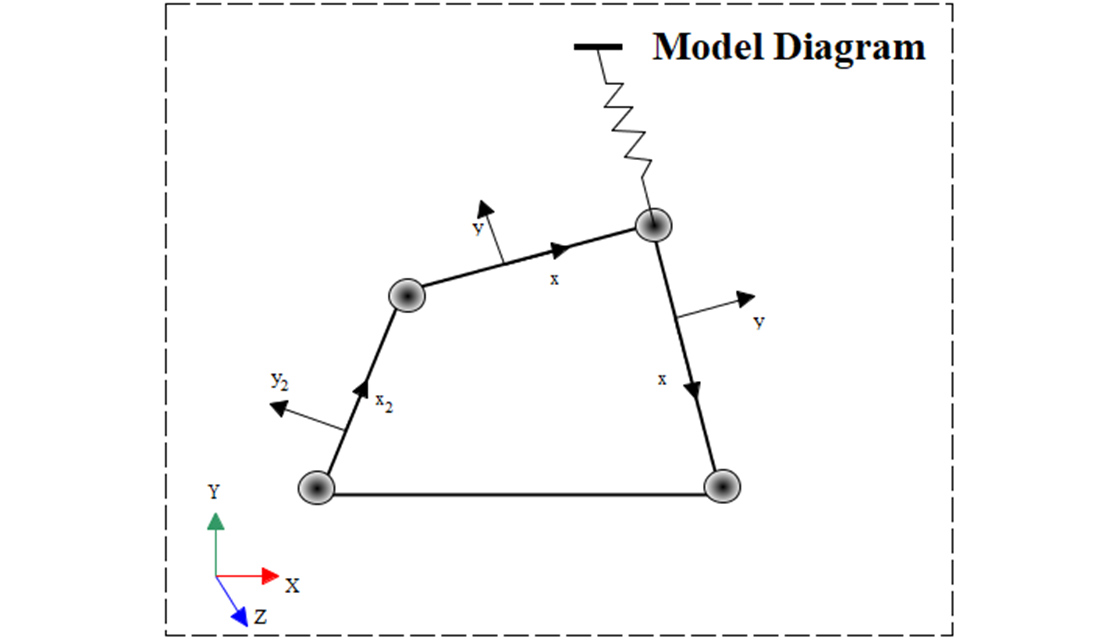

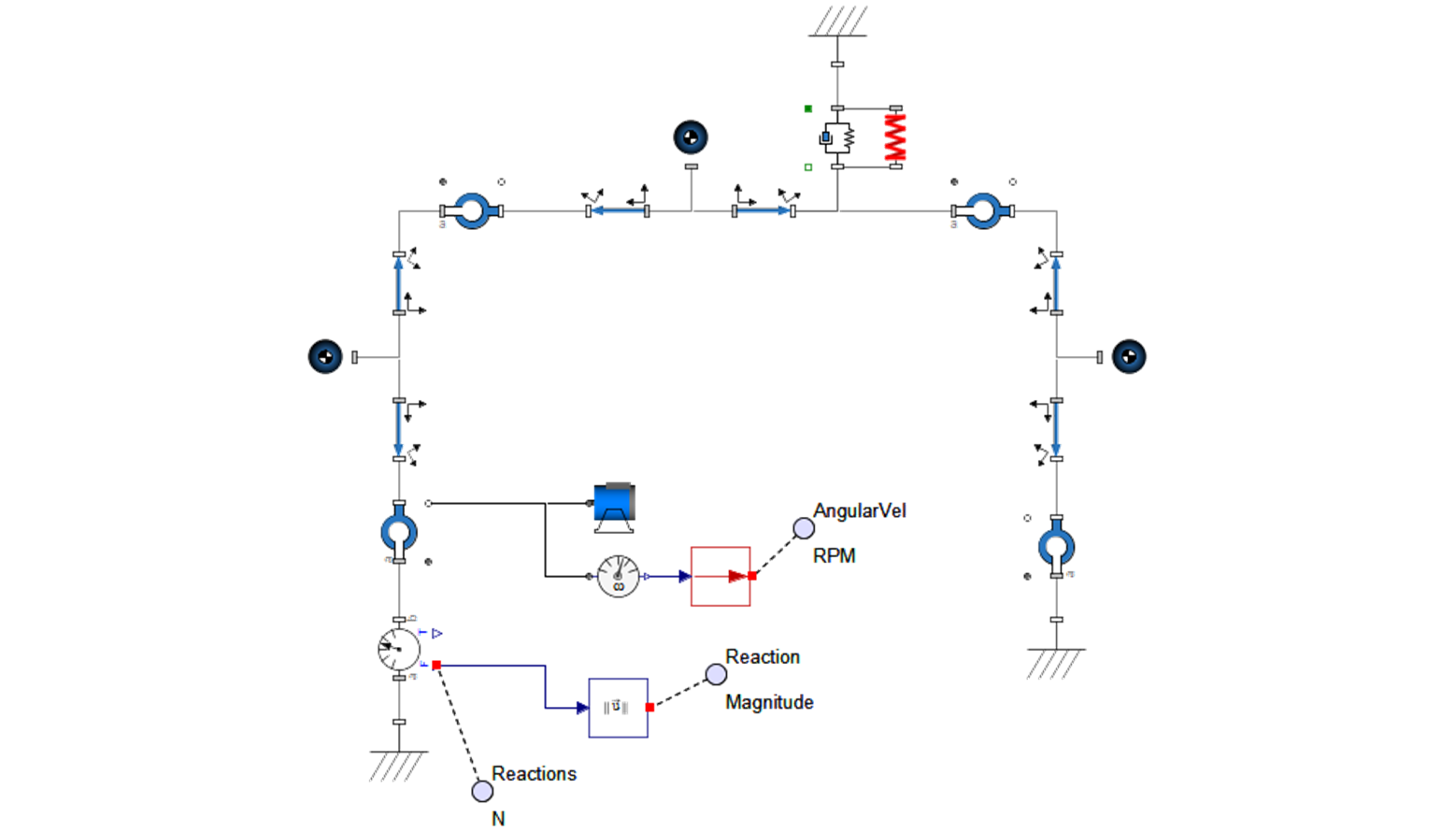

This is a standard benchmark for mechanical system modeling tools. Three bars are attached by revolute joints, while the fourth is attached to ground. A spring is attached between the coupling link and ground. A motor with varying torque (dependant on speed) is modeled using a Custom Component.


The model is simulated to give the angular velocity from startup, as well as the reaction forces on the driven joint.
Close

Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today


If you have MapleSim, download the model here:

Download the Model Request an S-function

Close

Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.


Model: Four-Bar Mechanism
Industry:

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images

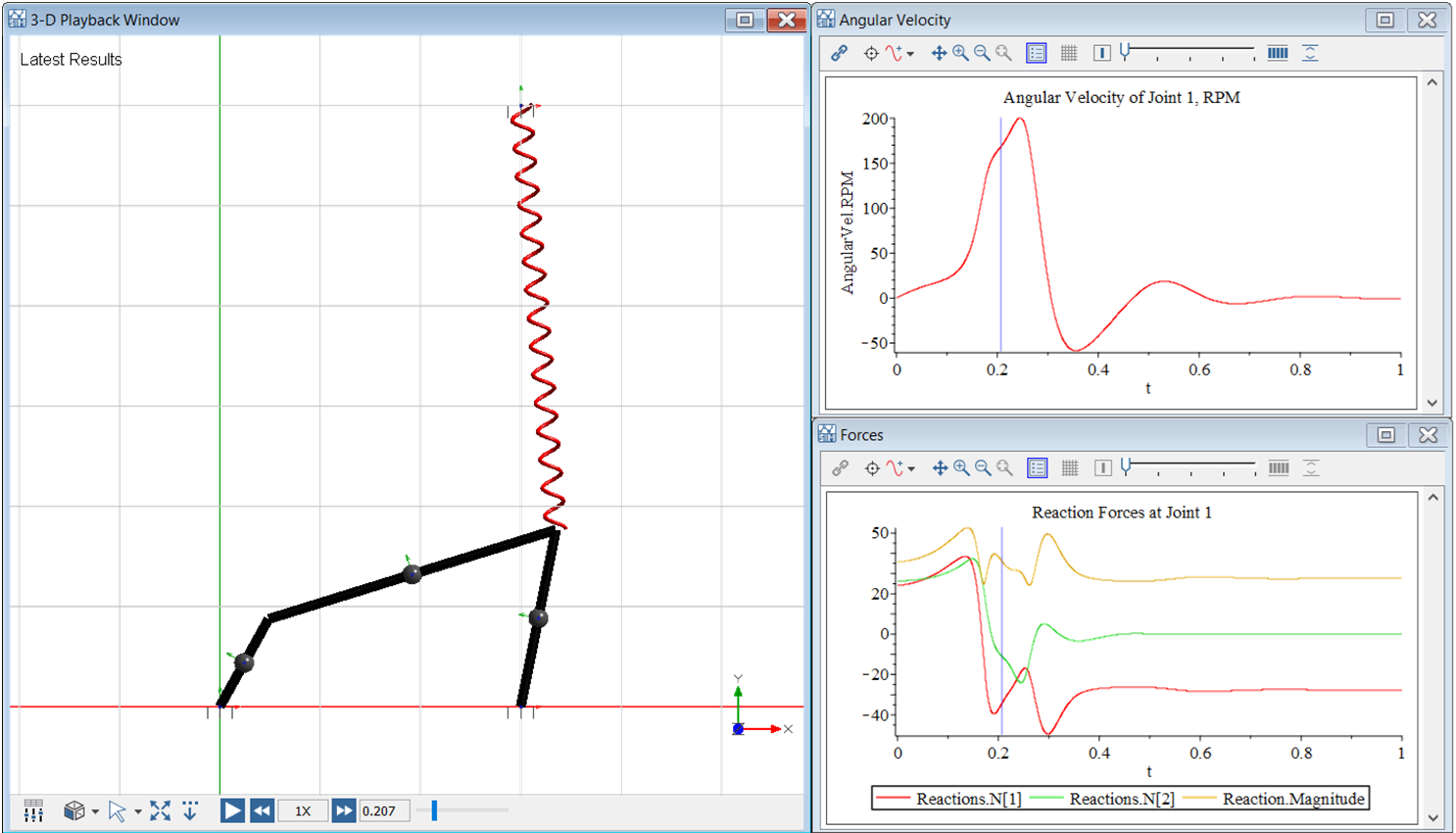

  • FourBarMechanismActiveForce Automatically-generated plots show reaction forces on a four-bar mechanism.
